Qwen3.8-27B-EXL3-K5K6-context API & Inference Endpoint

Which of the four builds

Same architecture and tokenizer. The headline KLD column is the v5 held-out suite (5,120 contexts, 10,480,640 scored positions, body-only through one shared BF16 head); the overlap-corrected 127-context v3 subset is kept beside it because absolute KLD is suite-specific and the two columns cannot be compared with each other. The frontier figure below still plots the v3 axis. The context edition's native result is MTP-3 with an 8.4 MP image cap, qualified on a physical RTX 5090 at utilisation 0.955; the other rows are real RTX 5090 MTP-3 tests. These profiles are not interchangeable. (collection).

Table with columns: build, download, resident, v5 held-out mean KLD, corrected v3 mean KLD, context profile, pick it when
build	download	resident	v5 held-out mean KLD	corrected v3 mean KLD	context profile	pick it when
-hydrated	21.61 GB	20.31 GiB	0.002760	0.007172	~180k, 5090 MTP-3	fidelity first
-EXL3-K5K6	30.60 GB	20.32 GiB	0.003210	0.007945	~180k, 5090 MTP-3	you want the width knob at launch
this build	20.70 GB	18.41 GiB	0.003509	0.009459	262,144, MTP-3, 8.4 MP cap	native window plus speculative decode, hardware-qualified on a physical RTX 5090
-K4	28.31 GB*	17.89 GiB	0.010604	0.029679	262,144, 5090 MTP-3	native context is non-negotiable

Byte and memory conventions for this table. The download column is whole-tree bytes — every published file of the artifact as its release evidence counted it (receipts/collection-index.json, serialized_bytes.whole_tree_bytes: hydrated 21,610,933,884 B, K5/K6 30,597,231,933 B, this build 20,696,053,306 B) — and they are serialized bytes on disk, never resident memory. *The K4 release evidence records no tree count, so that one row is the sum of its safetensors shards, 28,313,841,196 B, read from the published repository. This build's resident weight is measured twice: 18.41 GiB as run on the rental RTX PRO 6000 engine-budget proof and 18.19 GiB on the physical RTX 5090 at the qualified 0.955 profile. The table prints the larger figure deliberately, because receipts/vram-class-verdict.json elects 18.41 GiB for every class prediction; the 0.22 GiB gap is the rental-versus-5090 delta, not a change in the checkpoint.

Official Qwen/Qwen3.8-27B-FP8 reads 0.005294 on the v5 suite and 0.012798 on the corrected v3 subset: the three K5/K6 rows are below it on both suites, K4 on neither.

Recipe

Table with columns: role, representation
role	representation
MLP `gate_proj`, `up_proj` (64 layers)	EXL3 K5, `mcg`
MLP `down_proj` (64 layers)	EXL3 K6, `mcg`
attention: `linear_attn.{in_proj_qkv,in_proj_z,out_proj}` ×48, `self_attn.{q,k,v,o}_proj` ×16	EXL3 K5 on disk, `mcg`, calibrated
`lm_head`

Built from Qwen/Qwen3.8-27B @ 1d4bf0f2ff6012fd82039f2fa52739d0dd7c60c0. Verified after the build: reconstructing every EXL3 module yields exactly upstream's 1,199 logical tensor names with matching shapes; the finalizer fails closed otherwise.

A rebuild of this recipe is a sibling, not this checkpoint. The published bytes are the artifact: a recipe fixes composition, widths and byte budget exactly, and it does not fix the weights. That was measured on the hydrated sibling's recipe, which comes out of the same converter. A fresh conversion returned 13 of 16 pinned payload files identical — every config, the tokenizer, the index and both quantization descriptors — with byte-identical shard headers, the same tensor names, dtypes, shapes and offsets, and the same per-role byte totals and assigned widths, while 399 of the 409 quantized modules (97.6 %) differed inside their .trellis payloads, at 41-92 % of the bytes each (mean 82 %). No scale, norm, embedding, vision or BF16 companion tensor moved. The converter is nondeterministic and that was measured, not inferred: two runs of one conversion, minutes apart, agreed on every width and global scale and disagreed on the converter's own proxy_err (receipts/converter-determinism.json). A rebuild is a different valid artifact of the same recipe, not a broken one, and every fidelity number on this card — all of which measure the published bytes a downloader receives — is unaffected. And "rebuild this and you get these numbers" is no longer an untested expectation. A third conversion of that hydrated recipe — a sibling again, differing in 399 .trellis payloads and nothing else — was captured and replayed on the identical v5 shard-0 protocol (512 contexts, 1,048,064 scored positions, same shared head, same comparator): paired against the published checkpoint the difference is −3.755e-06, 95 % source-cluster bootstrap interval [−2.854e-05, +2.062e-05], which brackets zero, on 257 contexts to 255 with no ties. Two controls make that attributable to the sibling's weights rather than to the harness — replaying the published checkpoint against the same reference capture returned its mean and all 512 per-context rows bitwise, and a fresh recapture reproduces that mean exactly — so the comparison's floor is zero, not a tolerance. , which is what turns "the recipe is the reproducible thing, the bytes are the artifact" into a measurement rather than a hedge. It is one sibling, one recipe, one shard, at this protocol's resolution: it bounds the converter's fidelity variance, it does not estimate it, and it is not a finding that converter nondeterminism is fidelity-neutral in general (). Practically: check the digest of the published tree against rather than against your own conversion, and read a byte diff below this floor as the converter rather than as tampering, corruption or a changed recipe. The same run also showed the recorded build environment is incomplete — the pinned image has no , which the conversion imports on an unconditional path, so that image provably could not have finished the job; the conversion-capable image is . Keep the two senses of reconstruction apart: the 1,199-tensor check above is the converter-side one, names and shapes verified by the finalizer, while the runtime's / reconstruct+GEMM prefill path turns stored trellis bytes back into weights at load and is untouched by any of this.

The vision tower stays BF16 for a measured reason. Quantizing it (-vb 6) saves 0.58 GB but the converter splits upstream's fused visual.blocks.N.attn.qkv into separate q/k/v projections, so the checkpoint stops matching the architecture's weight names — and the EXL3 loader excludes vision by design anyway. The topology check caught it; the build was redone.

Fidelity

v5 held-out suite — 10,480,640 scored positions

This is the headline fidelity evidence, and it replaces the 136-context / 278,392-position v3 table below as the number to quote. The v3 and v4 results stay published because they are what the recipe was selected and then frozen against. Metric is KL(BF16 ‖ candidate) over the full vocabulary with both operands replayed through one shared BF16 LM head, body-only; this build is scored as its serialized checkpoint, with no int8 input overlay and no candidate-owned head. Intervals are a source-cluster bootstrap over the 842 clusters, 10,000 resamples, seed 1.

Table with columns: candidate, v5 mean KLD, 95 % CI, top-1, paired vs official FP8, exact worst position
candidate	v5 mean KLD	95 % CI	top-1	paired vs official FP8	exact worst position
hydrated	0.002760	[0.002540, 0.003020]	97.70 %	−0.002534 [−0.002708, −0.002383], 5,118/5,120	8.258
online K5/K6	0.003210	[0.002982, 0.003480]	97.52 %

How closely these absolute numbers may be read. Each mean is a body-only replay value: both operands are projected through the one shared BF16 head, and the replay path is not the engine's own logit path. Replaying the unquantized model against its own live logits measures KL(live ‖ replayed) = 5.83e-04 — 32 v5 shard-0 contexts, 65,504 scored positions, context-bootstrap 95 % CI [5.15e-04, 6.64e-04], top-1 99.10 %, on the same suite, reference capture and shared BF16 head as the means above (receipts/replay-live-floor-v5.json), superseding the six-context v3 derivation of 6.54e-04 (receipts/v3-qualification-bf16.json), which its interval contains — and moving hidden-state storage from BF16 to fp32 moves a candidate's KLD by 5.6 % (docs/24). Absolute values are therefore within-suite numbers: they carry a ~6e-4 implementation offset plus a ~5 % storage systematic, and absolute differences below about 1e-3 are not resolvable. Both offsets are common-mode — every candidate replays through the identical path — so paired differences and orderings are the resolvable quantity: hydrated − online K5/K6 is −4.50e-04 [−4.69e-04, −4.33e-04] on 4,922 of 5,120 contexts (receipts/kld5-10M-paired.json), smaller than the replay floor and resolved the floor cancels in the pairing. The floor is now derived rather than on six out-of-suite v3 contexts, and the rule it licenses is unchanged. What it does license: it is not a claim that candidate KLDs are 11 % smaller, and it does not let any single absolute mean be read more finely — the 5.83e-04 figure is a mean over 32 contexts whose own means span 3.09e-04 to 1.63e-03 with a worst single position of 0.2534. It is also not the cross-engine floor (0.000507), which is a different control. Method of record: .

0.003509 against FP8's 0.005294 is 34 % lower divergence. The paired result is what carries it: this build is closer to BF16 than official FP8 on 5,109 of 5,120 contexts, and the interval on that difference never touches zero. The build that produces it serves at 18.41 GiB resident in its int8-overlay MTP-3 profile, 19.31 GiB with the BF16 input table, against FP8's 28.51 GiB. Its exact maximum single-position divergence over all 10,480,640 positions is 5.557, the lowest of the five candidates — below FP8's 10.714 and far below the online-encoded sibling's 22.241, which is the one axis on which the context edition leads the whole family. Ordering is unchanged from v3, and from v4 for the four builds that suite covered: hydrated, online K5/K6, this build, then FP8, then K4.

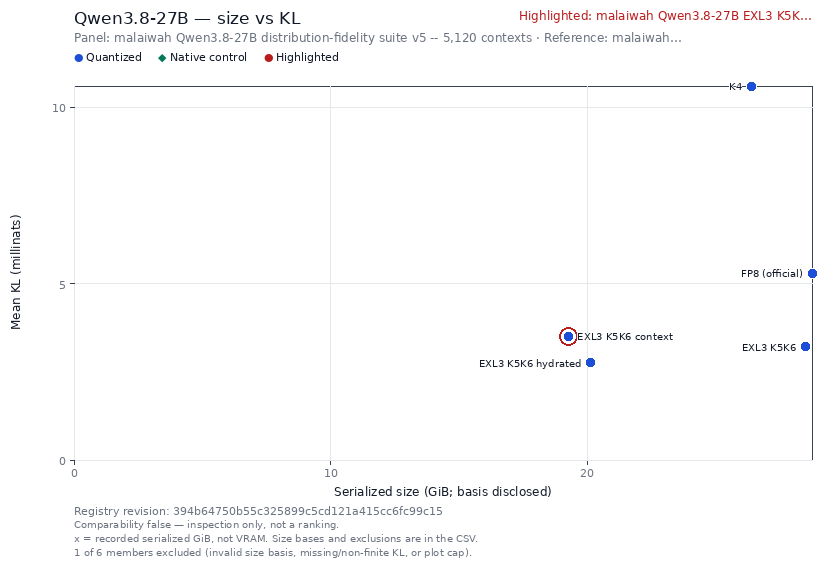

The widest single view of the evidence: A is the only panel where every family appears together (v5 shard 0, 512 contexts, 1,048,064 positions, ten candidates — this build is the context circle at 0.003409), B is the same suite's 1M → 10M ladder (five vLLM builds, 5,120 contexts at 10M), C1/C2 are the superseded corrected v3 (127 contexts, 259,969 positions) and the source-disjoint v4 (36 contexts, 73,692 positions) on separate y-axes behind a barrier, and D is turboderp's own published protocol (OpenWebText, 65,536 positions), which we have never run. Two rules travel with the figure: the cross-engine floor belongs to the llama.cpp rows only, and no ratio across panels means anything. Generated by tools/make_master_kld_chart.py, which reads every one of our values from receipts/ at runtime.

These numbers are re-derivable, not merely re-runnable. 5,240,320 scored positions — five candidates x 512 contexts x 2,047 positions — reproduce bit-for-bit across independent runs with separate model loads and different harness generations: every measured field identical, including the complete per-context arrays and the whole bootstrap block, with only the capture directory paths and the additively-added tail histogram differing (receipts/capture-determinism.json), and a third harness generation's unwindowed --score-from 0 control returns the same shard-0 means to the last digit (receipts/scored-window-offset.json). The scope is part of the claim and travels with it: one GPU, one driver, one pinned rootfs, enforce_eager=True, max_num_seqs=1, one context per forward, 512 MiB bf16 KV. It is not a claim that vLLM is bitwise deterministic in general — nothing here covers CUDA graphs, max_num_seqs > 1, chunked prefill with more than one chunk per context, other GPUs or drivers, or anything downstream of the logits.

Suite identity. receipts/kld5-suite-manifest.json, schema qwen38-distribution-fidelity/6, suite token SHA-256 510541f6861b589d44932db253ec25d96d6daaeeee4ea2ab9b65329209482b88: 5,120 contexts × 2,047 scored positions = 10,480,640, drawn from 842 source clusters over a corpus of 941 documents / 70,348,971 bytes fetched by tools/fetch_corpus_v5.py (fetch log). Windows are exact-advance and non-overlapping; an independent re-check of the emitted suite found 5,120/5,120 unique context token hashes and 0 overlapping windows. It is token-disjoint from the v4 qualification — 0 of the 160 prior context hashes is reachable.

Exclusion policy: contamination is 0 by construction, not by luck. Before a single context is selected, every source document is scanned at every position for exact normalized 12-token overlap with the exllamav3 calibration data, and any document with even one hit is dropped whole: 44 of 941 documents excluded (43 code, 1 encyclopedic), 897 eligible. No emitted context can then contain calibration text, which is why the scan over the finished suite reports zero hits. This is the same conservative rule that had to be applied retroactively to v3 and v4, applied here before selection instead of after.

Ladder stability. tools/kld_ladder.sh walks the suite in ten 512-context shards — capture six models, replay the five candidates, verify, delete 64 GB of hidden states, next shard — and tools/kld_aggregate.py welds the verified shard reports into cumulative receipts at the 1M / 2M / 5M / 10M checkpoints. The cumulative mean is flat along that ladder: hydrated reads 0.002700 / 0.002759 / 0.002699 / 0.002760, so the 10M figure is not a late-shard artifact. Per-candidate receipts are receipts/kld5-10M-{hyd,k5k6,ctx,fp8,k4}.json (schema qwen38-kld-ladder-cumulative/2); the paired differences are in receipts/kld5-10M-paired.json.

Distribution tail. A mean, a top-1 rate and one worst position do not describe a tail, so here is all of it, measured on shard 0 of the same suite — 512 contexts, 1,048,064 scored positions — the identical contexts for all five candidates. Receipts receipts/kld5-1M-tail-{hyd,k5k6,ctx,fp8,k4}.json (schema qwen38-kld-ladder-cumulative/2, built by tools/kld_aggregate.py); this build's row is receipts/kld5-1M-tail-ctx.json. Every qwen38-fidelity-report/2 replay accumulates a 560-bin log-spaced histogram of per-position KLD (KLD_HIST_LOG10_LOW=-12.0, KLD_HIST_LOG10_HIGH=2.0, KLD_HIST_BINS_PER_DECADE=40 in tools/fidelity.py) whose bin counts add across shards, which is what makes cumulative quantiles possible at all.

Table with columns: candidate, mean, p50, p95, p99, p99.9, p99.99, exact max, share of positions above 0.1, above 1.0
candidate	mean	p50	p95	p99	p99.9	p99.99	exact max	share of positions above 0.1	above 1.0
hydrated	0.002700	0.00109	0.0082	0.0276	0.1319	0.463	3.735

For this build the tail behaves exactly like the mean: the ordering at p50, p95, p99, p99.9 and p99.99 is the same as the ordering of the means, so the mean is not hiding anything worse at depth. Its entire tail sits below official FP8's at every measured quantile — 0.0357 against 0.0531 at p99, 0.1642 against 0.2438 at p99.9, 0.587 against 0.812 at p99.99 — and 0.2287 % of positions exceed 0.1 against FP8's 0.3912 %. It is the highest of the three K5/K6 builds at every quantile, the same third place its mean reports, and the price of the 262,144-token window. Its exact maximum on this shard is 3.749, essentially level with hydrated's 3.735, which is consistent with this build owning the lowest exact maximum (5.557) over the full ten-shard run.

What this run does not give you.

Absolute KLD is suite-specific. The v5 numbers are not comparable with the v3 numbers below: the corpus mix differs, and K4 reads 0.029679 there against 0.010604 here. Only within-suite ordering and paired differences transfer.
Cumulative token percentiles come from one shard, not from all ten: the ten shard reports of the 10M run carry no token-level KLD histogram, so nothing could be recombined across them. The tail table above closes that gap on shard 0 (receipts/kld5-1M-tail-*.json), with bin-bounded quantiles — each receipt carries lower / upper / estimate, relative bin width about 5.6 % — and exact maxima and exceedance counts. Across all 10,480,640 positions only the means, the intervals, the paired results and one exact global maximum per candidate exist.
The five candidates' hidden states and the BF16 references for shards 1-9 were deleted shard by shard to fit 135 GB of scratch, so the v5 run is recomputable from the pinned corpus fetch log and suite manifest. The shard-0 BF16 reference was kept and is published, with the suite, all ten shard views and 79 per-shard reports, so a new candidate can be replayed against the identical contexts without recapturing the reference — see Reproduce this.

v3 development suite — 136 contexts, 278,392 positions (superseded as headline, kept)

These are the measurements the recipe was selected against, and they remain the source of the int8-input-overlay and K6-head attributions below. Every number in this subsection, including both overlay rows, is a v3 measurement; none of it is comparable to the v5 magnitudes above.

Held-out corpus, 136 analysis contexts, 278,392 full-vocabulary scored positions, KL(BF16 ‖ candidate) with one shared BF16 head for both operands, source-cluster bootstrap. The first row is the serialized checkpoint with its BF16 input table; the second changes only that table at load.

Table with columns: candidate, resident profile, mean KLD, 95 % CI, token median, top-1
candidate	resident profile	mean KLD	95 % CI	token median	top-1
this build, BF16 input, MTP off	19.31 GiB	0.009673	[0.00711, 0.01275]	0.001672	96.81 %
this build, int8 input overlay, MTP off	18.13 GiB	0.009738	[0.00716, 0.01284]	0.001687	96.80 %
hydrated (attention K6)

Overlap-corrected subset: a later all-position 12-token scan found exact calibration overlap in 2/41 source documents that the original fixed-stride scan missed. Conservatively removing their nine contexts gives this build 0.009378, hydrated 0.007172, official FP8 0.012798, and NVFP4 0.092727 over 127 contexts. The int8 input-overlay row is 0.009459 on that same subset. No ordering changes.

The v3 NVFP4 number is not our current one, and the two suites must never be mixed. NVFP4 reads 0.092727 on this corrected subset and 0.030115 on v5 shard 0 — same checkpoint, same revision, same flags, same shared-head protocol — and its v5 row is in the shard-0 table below. That gap is suite hardness, measured for all six candidates rather than argued: v3-corrected ÷ v5 shard 0 is 2.4625x official FP8, 2.5293x online K5/K6, 2.6564x hydrated, 2.7505x this build, 2.8688x K4 and 3.0791x NVFP4 — a band spanning 1.2504x end to end, with the ordering identical in both suites (receipts/nvfp4-v5-measurement.json, block suite_comparability_v3_vs_v5). A band of factors and not one factor is why no conversion between the suites exists: the ordering carries across, an absolute value never does, and a v3 number must never appear in the same sentence as a v5 number.

Paired on identical v3 contexts:

baseline versus official FP8: −0.003453, 95 % CI [−0.004383, −0.002666], 135/136 contexts — 26 % lower divergence on this suite at 68 % of its resident weight; the int8 overlay is 64 % of FP8 resident weight for +0.000065 KLD. The same comparison on the v5 held-out suite is −0.001785 over 5,109/5,120 contexts, 34 % lower divergence; the two percentages are not two measurements of one quantity, they are two suites.
baseline versus the hydrated build: +0.002266 (1/136). That is what K5 attention costs, and it buys 0.85 GiB and ~16k tokens of context before the embedding overlay.
Calibration beats the runtime overlay again: serialized K5 attention measures 0.009673 where the same family encoded K5 at load measures 0.012135 on the original v3 receipt; overlap-corrected values are 0.009378 versus 0.011801.
With its own K6 head the BF16-input baseline is 0.009795 on the original v3 receipt and 0.009503 on the corrected subset. The head and input-overlay deltas were measured separately; their combination is not presented as a measured number.

Against GGUF, measured on our suite

The standing objection to this card's headline is that official FP8 is a throughput format whose quality is Q4-to-Q5 class, so beating it is a weak claim, and that llama.cpp's Q8_0 and Q6_K are the honest bar. That is now measured rather than argued.

Three GGUFs from unsloth/Qwen3.8-27B-GGUF@f1bfb127c64f7072bdd2cad55f258b9c8b2910fe were captured under llama.cpp pinned at commit ece963f41b0b02d7a0d61436ae365762c073a4c8 with tools/gguf_capture.cpp, which reads the post-final-norm state — the same mathematical point the vLLM hook takes, with bf16 rounding verified bit-identical to torch on 2,012,449 probe values — and scored against the same BF16 teacher through the same shared BF16 head, on shard 0 of the v5 suite: the same 512 contexts and the same 1,048,064 scored positions every row below saw. Manifests come from tools/gguf_manifest.py and each one carries the GGUF blob digest and the llama.cpp identity; the build script is tools/build_llamacpp.sh. Receipt receipts/cross-engine-comparator.json, per-candidate reports .

Table with columns: candidate, engine, measured mean KLD, top-1, p99.9, serialized
candidate	engine	measured mean KLD	top-1	p99.9	serialized
GGUF `Q8_0`	llama.cpp	0.001087	98.53 %	0.0351	27.05 GiB
`turboderp/Qwen3.8-27B-exl3` 6.00bpw @ `d32ba0bb`	vLLM	0.001583	98.28 %	0.0668

The engine control, measured and not assumed. The unquantized BF16 GGUF captured in llama.cpp against the vLLM BF16 reference on identical tokens, the shared head and the same 512 contexts measures 0.000507 mean, 99.07 % top-1 and p99.9 0.0113 (receipts/gguf-report-engine-floor.json). It proves engine confounding. KL is neither additive nor a metric, so the control is not subtracted and supplies no quantization-only bound.

Four — cells, for two different reasons. Two are the builds that ship BF16 attention for the runtime to encode at load, so their disk bytes are not a like-for-like payload; the two NVFP4 cells are empty because we publish no serialized-byte receipt of our own for a third party's checkpoint — unsloth's 21.34 GiB and gittensor's 18.77 GiB are measured resident weights, a different quantity. The payload figures are immutable_payload_bytes from receipts/collection-index.json (this build 20,696,033,532 B = 19.275 GiB, hydrated 21,610,916,123 B = 20.127 GiB; the table truncates both to two decimals) and are serialized bytes, never VRAM — this build's 19.27 GiB on disk is larger than its 18.41 GiB resident because the input table ships BF16 and is narrowed to int8 at load. The FP8 figure is resident weights and is labelled as such.

The p99.9 column, and why it differs from the tail table above. These p99.9 values are each report's exact shard-0 p99.9 as the comparator receipt read them; the tail table in Fidelity quotes the bin-bounded cumulative estimate from the 560-bin histogram, whose bins are about 5.6 % wide — this build reads 0.1642 there and 0.1632 here, and the exact value lies inside the bin the estimate names. The two differ by construction, not by measurement.

NVFP4 on the identical shard, and it carries no cross-engine term. unsloth/Qwen3.8-27B-NVFP4 at revision 9c73e2da is served by the same vLLM build as our rows, so unlike the GGUF rows there is no engine term to subtract or estimate and it is directly comparable to this build. On the same 512 contexts and the same 1,048,064 positions, through the same shared BF16 head, it measures 0.030115 mean KLD, 95 % CI [0.027637, 0.032965], 93.16 % top-1, median 0.009584, p95 0.10051, p99 0.33546, p99.9 1.6228, exact worst position 10.6285 and mean JSD 0.010104 bits (receipts/kld5-1M-nvfp4.json, with the run's own account in receipts/nvfp4-v5-measurement.json). That is 8.8x this build's 0.003409, 2.9x K4 at the same 4-bit weight class, 5.8x official FP8, 11.2x the hydrated sibling and 27.7x Q8_0 as measured; its p99.9 of 1.6228 is 9.9x this build's 0.1632.

Paired per context, which is a stronger statement than any ratio of means: NVFP4 loses every one of 512 contexts against this build. The paired difference is +0.026706 in this build's favour (95 % CI [+0.024465, +0.029285], 512 wins to 0), and NVFP4 loses all 512 against official FP8 as well (+0.024918, [+0.022756, +0.027424], 0 wins to 512) — not one context anywhere in the shard where it is the better of either pair (receipts/kld5-1M-paired-nvfp4.json). That is the honest form of the comparison: a clean sweep of paired contexts, not a ratio of means.

gittensor's "RTX5090" NVFP4, measured on the same shard because its card claims the 32 GB / 262,144-token axis by name. gittensor-model-hub/Qwen3.8-27B-NVFP4-RTX5090 at revision 69274a0d (ModelOpt W4A4 body, MTP and vision left BF16, FP8 KV cache baked into its config) is served by the same vLLM build as our rows, so it carries no cross-engine term. It measures 0.062163 mean KLD, 95 % CI [0.058491, 0.066360], 89.85 % top-1, p99.9 2.5911 — the weakest row on this table, at 2.1x unsloth's NVFP4 and 18.2x this build. Paired per context it loses every one of 512 contexts to this build (+0.058754 in this build's favour, 95 % CI [+0.055324, +0.062694], 512 wins to 0), every one of 512 to official FP8, and 511 of 512 to unsloth's NVFP4 (+0.032048, [+0.030711, +0.033583]) — the same weight format at 2.57 GiB less measured resident weight (18.77 vs 21.34 GiB, identical flags, engine-reported), which prices that memory saving honestly: roughly double the KLD. A bf16-KV control capture moves its mean by only +0.000365 [+0.000058, +0.000679], so its baked FP8 KV cache explains about 1 % of the gap to unsloth — the rest is the weight conversion itself. Its card's serving numbers (18.8 GB weights in VRAM, 275,941-token FP8 KV pool, 80.6 tok/s decode, native 262,144 on one 5090) are its own claims, which we did not run; our measured 18.77 GiB resident is consistent with the first of them, and consistency is not verification. Its only published fidelity evidence is a 20-item smoke that its own card says not to treat as scores (receipts/kld5-1M-gt5090.json, receipts/kld5-1M-paired-gt5090.json, full account with the checkpoint's composition, digests and mirror in ; archival mirror ).

Where this build sits, without format over-attribution. Under vLLM it measures 0.003409, below same-engine official FP8 at 0.005197 and above same-engine hydrated/online values. Cross-engine, llama.cpp Q6_K measures 0.002035 and UD-Q5_K_XL 0.004444. Those are complete-pipeline observations, not quantization-format rankings. The p99.9 values are 0.0794 (Q6_K), 0.1632 (this build), 0.2144 (UD-Q5_K_XL) and 0.2440 (FP8).

Correction, 2026-08-16 — the byte axis in the table above is not one axis, and every mixed comparison flattered us. A GGUF row is the whole file of a text-only artifact; our row is tensor payload of a multimodal tree that also carries an MTP draft. Read from each artifact's own tensor table, without downloading any payload (cross-candidate-byte-accounting.json):

Table with columns: candidate, file, tensor total, token_embd, output, transformer body, multimodal deployed
candidate	file	tensor total	`token_embd`	`output`	transformer body	multimodal deployed
GGUF `Q8_0`	27.05	27.04	1.258 (Q8_0)	1.258 (Q8_0)	24.526	27.92 (+ `mmproj-BF16` 0.867)
GGUF

All figures GiB. The embedding and head widths are not uniform across GGUF tiers, and the vision encoder is absent from every GGUF text file - it ships separately as mmproj-BF16.gguf, which no earlier comparison of ours counted. What that does to the four published claims, two against us and two for us:

6 bits, Q6_K against hydrated: our sentence understated their byte spend roughly threefold. "+1.186 GiB more file" is +1.198 on tensors and +3.634 GiB of transformer body (23.1 % more than ours). Their fidelity win at 6 bits stands exactly as published - it is the price we mis-stated, in our own favour.
6 bits, deployed: a multimodal Q6_K deployment is 22.18 GiB against our 20.13 GiB whole tree, so ours is 2.053 GiB smaller and needs no second file.
5 bits, UD-Q5_K_XL against the context edition: this claim was wrong against us. We do not pay "0.445 GiB more" for the win - on transformer body they carry 2.148 GiB more (+14.4 %), and our deployed multimodal artifact is 0.422 GiB smaller.
8 bits, Q8_0 against online K5/K6: the bodies agree to 1.7 % (24.526 against 24.119), the most format-comparable pair on the table, and they win it cleanly. That row is the reason the others are worth reading: this is not a table where every axis favours the author.

Rule from here on, and it is printed rather than footnoted: "at equal file bytes", "at equal tensor bytes", "at equal transformer body" and "as a deployed multimodal artifact" are four different claims, and whichever one a sentence means is written into the sentence. No fidelity number changes.

Update 2026-08-16 — a near-equal-file-byte K6 build. The hydrated recipe with gate_proj and up_proj promoted K5 → K6 measures 0.001634 mean KLD [0.001541, 0.001742], top-1 98.248 % (k6-parity-kld.json). It beats hydrated by 0.001066 [0.000974, 0.001173] on 511 of 512 contexts for +1.348 GiB, and its complete vLLM pipeline measures 0.000401 below the llama.cpp Q6_K pipeline on 493 of 512. The cross-engine control cannot turn that into format parity or prove a byte-gap mechanism. It carries 2.306 GiB (13.5 %) less transformer body than Q6_K.

Two disciplines this exercise was run under, both worth more than the result: the payload was predicted at 23,035,310,148 B and measured at 23,035,310,148 B, zero error; and the registered 95 % interval [0.001175, 0.001601] missed — the measurement is 0.0000328 (2.0 %) above its upper bound, so all three estimators bracketed on the pessimistic side, with the role-share bound worst and the byte-law-at-Q6_K's-surplus form best, the opposite of what the surrogate's calibration implied. The published point prediction of ~0.0016 was within 2.1 % of measurement, the most accurate advance prediction this project has made — and the miss is printed beside it rather than dropped.

The complete-pipeline observations worth stating plainly:

At the nominal 6-bit point, llama.cpp Q6_K measures 0.002035 and vLLM hydrated 0.002700.
At the nominal 5-bit point, this vLLM build measures 0.003409 and llama.cpp UD-Q5_K_XL 0.004444.

The engine mismatch prevents format attribution in both directions. Q8_0 has the lowest measured complete-pipeline KL at 0.001087 for 27.05 GiB, and every GGUF point at or above 5 bits measures lower than official FP8. Those cross-engine observations make this card's "34 % lower divergence than official FP8" headline a weaker achievement than it sounds. Same-engine K4 and Unsloth NVFP4 comparisons remain directly attributable to the tested vLLM pipeline.

What this comparison does not settle. It is text-only teacher-forced fidelity on one shard of ten. It says nothing about serving 262,144 tokens with vision and MTP on a 32 GB card — this card's entire reason to exist — and llama.cpp KV-quant behaviour, prefill and decode speed are separate axes that were not measured here. Nothing above should be read as a capacity comparison: the GGUF numbers come with no measured resident weights, no KV budget and no native-context proof of ours. The GGUF rows are also a shard-0 ranking, not a paired per-context bootstrap against the ten-shard rows above, because those were welded from a different position count. Shard 0 is one tenth of the suite, and it is close to it: over all 10,480,640 positions the five vLLM means read 0.002760 / 0.003210 / 0.003509 / 0.005294 / 0.010604 — 1.9-2.9 % above these shard-0 values, ordering unchanged (receipts/kld5-10M-{hyd,k5k6,ctx,fp8,k4}.json). The GGUFs have no ten-shard equivalent; extending them is unrun.

One protocol objection, bounded rather than argued. llama-perplexity scores only the second half of each window, so every position it scores has at least 256 tokens of left context, while our suite scores from position 0. Re-scoring our own captures under that restriction lowers every candidate's mean by 1.3-2.1 % at a 256-token floor and 3.9-4.9 % second-half-only, uniformly enough to change no ordering — this build reads 0.003342 and 0.003243 respectively (receipts/scored-window-offset.json). The external protocol's scoring floor therefore explains at most about 5 % of any cross-protocol gap, and nothing in the ordering above.

Cross-citation: the same three GGUFs under llama.cpp's own protocol

The rows above are those GGUFs on our axis. They have also been measured on theirs, run exactly as its authors run it, so the two can be cited side by side without either being converted into the other: llama-perplexity --kl-divergence on WikiText-2 raw test, n_ctx 512, 147,900 scored positions, KL(BF16 GGUF ‖ candidate) with both operands inside llama.cpp and each candidate's own output head inside the measured path, base Mean PPL 6.950230 ± 0.044933 (receipts/wikitext-kld-run-a.json; full protocol, delta by delta, in docs/35-external-protocol-comparability.md).

Table with columns: quant, their protocol, their corpus, their top-1, our protocol, measured pipeline
quant	their protocol, their corpus	their top-1	our protocol, measured pipeline
`Q8_0`	0.000926 ± 0.000042	98.761 %	0.001087
`Q6_K`	0.002286 ± 0.000108	97.875 %	0.002035
`UD-Q5_K_XL`	0.004426 ± 0.000167	97.178 %	0.004444

The ordering is identical, but no ratio or conversion is valid across the protocols. They differ in corpus, scoring window, head and engine; our GGUF rows are additionally cross-engine. The 0.000507 BF16 control proves confounding and cannot be subtracted. Correction, 2026-08-16: This paragraph used to call the output head "the large one". It is now measured on our own corpus and it is not: replaying each candidate through its own head over all 512 shard-0 contexts and 1,048,064 positions raises its mean by at most 5.28 % (hydrated 5.01 % of head-inclusive divergence, context 4.06 %, K4 1.17 %, unsloth NVFP4 2.64 %, and exactly 0 % for the official FP8 export, whose head is byte-identical to the shared one — the internal control), every interval excluding zero (receipts/head-attribution-v5.json). Scoring geometry is worth ≤4.9 % by the same kind of control. So the two protocol terms we have quantified are together far too small to explain a 1.1-1.6x level difference: the level gap is not decomposed, the leading unmeasured candidates being their 512-token English-encyclopedic windows against our 2,048-token five-strata ones, and the width of a GGUF's own output.weight, which is a different tensor from any head measured above.

Their harness's own floor, measured on our hardware instead of assumed. The Minimum KLD column is negative for all three — −0.000080, −0.000056, −0.000077, i.e. 5.6e-5 to 8.0e-5 — the uint16 16-nat log-probability encoding showing through rather than a candidate beating its own reference. The same term appears in the perplexity: 6.9525 in the capture log against 6.950230 in the scoring runs, identical weights on identical tokens, differing only by that stored round trip.

Tokenization is not part of the difference, and that is a measured null result. llama.cpp's GGUF BPE and our Hugging Face tokenizer produce bit-identical 297,194-token streams over this corpus — same int32 digest, no first divergence index — and the 296,960-token prefix that llama-perplexity actually scores is identical too (receipts/wikitext-kld-token-identity.json).

And one finding worth its own line: perplexity does not reproduce the KLD ordering. Q6_K has the smallest PPL delta of the three, +0.00079 against the 6.950230 base, while Q8_0 — the better quant by every divergence statistic, including a mean 2.5x lower and 0.9 points more top-1 agreement — is +0.00467. A quantization that shifts the distribution can shift it in the direction that happens to flatter a corpus mean, which is an argument for the metric this whole section is built on and against ranking quants by perplexity delta.

What this cross-citation cannot do is put this build on their axis: llama-perplexity cannot read an EXL3 checkpoint. The table at the top of this section, where every candidate is scored by one harness on one suite, stays the primary comparison.

Post-selection qualification (v4, source-disjoint)

The v3 numbers above come from the suite that guided recipe selection. This is the test that did not: 160 new contexts from 100 documents with zero intersection with the development suite (context token hashes 0/160, document names 0/100, content hashes 0/100), partitioned by whole source cluster, run once, with no recipe changed afterwards. The v5 held-out suite is a third, much larger post-selection run, and it is token-disjoint from this one.

The original 42-context table used a fixed-stride character overlap scan. A later, offset-independent scan found exact 12-token calibration overlap in four qualification source documents. Applying the same conservative rule to every candidate — exclude every context from any source document with even one hit — leaves 36 contexts / 24 clusters:

Table with columns: candidate, mean KLD, 95 % CI, top-1, paired vs FP8
candidate	mean KLD	95 % CI	top-1	paired vs FP8
hydrated	0.003093	[0.002577, 0.003684]	97.63 %	−0.002798, 36/36
K5/K6 online K6	0.003455	[0.002916, 0.004060]	97.50 %	−0.002436, 36/36

The correction changes no ordering or paired win: the three EXL3 builds remain 47 / 41 / 32 % below FP8. The original 42-context figures and the candidate-independent correction are both preserved in docs/31. Absolute magnitudes remain suite-specific.

Public capability — MMLU-Pro, item-paired against BF16

70 MMLU-Pro questions, 14 official categories, 5 per category, pinned TIGER-Lab/MMLU-Pro@b189ec765aa7ed75c8acfea42df31fdae71f97be, official five-shot category prefixes, greedy, thinking at low reasoning effort, 5,120-token completion cap. The BF16 control ran first and the acceptance rule was frozen in receipts/public-capability-plan.json before any candidate result was seen. All six models answered the same 70 items in the same order through the same extractor, so every candidate row is paired item-by-item against that control.

Table with columns: model, absolute, Wilson 95 %, BF16-pass retention, Wilson lower, regressions, improvements, completion-cap failures, receipt
model	absolute	Wilson 95 %	BF16-pass retention	Wilson lower	regressions	improvements	completion-cap failures	receipt
`Qwen/Qwen3.8-27B` BF16	57/70 (81.4 %)	[70.8 %, 88.8 %]	reference	—	—	—	4	bf16

The pre-registered bar, and this edition's verdict

The frozen plan accepts a candidate when BF16-pass retention has a Wilson 95 % lower bound at or above 0.90 and no category loses more than two BF16 passes. The category clause is met by all five candidates — the worst case is two passes in philosophy, for the hydrated build and online K5/K6 — so the retention lower bound is the only clause that ever fails.

This edition is the only candidate that clears the bar: 56/57 BF16-pass retention, Wilson 95 % lower bound 90.7 %. Exactly one of BF16's 57 passes flipped to a failure and two BF16 failures flipped to passes, for 58/70 absolute. K4 and official Qwen/Qwen3.8-27B-FP8 read 88.1 %; the hydrated build and online K5/K6 read 85.6 %. None of the other four candidates clears the bar, and all four shortfalls are published as measured.

Clearing the bar is not a claim that this edition beats anything. Every interval in the table overlaps every other interval, including the BF16 control's and official FP8's, so the matrix does not rank these models and this card does not claim it does. 58/70 against BF16's 57/70 is one item inside intervals more than 15 points wide; it is not evidence that this edition is better than BF16, than official FP8, or than its siblings.

Why almost nothing clears this bar at 70 items

With 57 BF16 passes as the paired denominator, 56/57 is the smallest count whose Wilson 95 % lower bound clears 0.90 (56/57 → 90.7 %; 55/57 → 88.1 %; 54/57 → 85.6 %). A single paired regression is the entire budget, so no result that gives up two can pass, however sound the build — the suite has too few items to certify the bar it pre-registered. This edition clears it by spending exactly one regression and no more, which is a narrow pass rather than a demonstrated margin. The same limit applies to official FP8 exactly as it applies to the EXL3 builds: what the matrix shows is a power limitation of a 70-item draw, not evidence that any of these checkpoints is broken.

Two protocol facts that bound the reading

Exact-answer agreement is 0/70 for every EXL3 candidate, and 1/70 for official FP8 (one math item, a 113-token answer both models pass). Long chains of thought differ token-wise on essentially every item, so pass/fail outcome is the only meaningful pairing unit; nothing here is a generated-text match claim.
Four BF16 items end at the 5,120-token completion cap with no letter emitted and are scored as failures under the plan's frozen addendum, so the control itself is depressed by the cap; per-model counts are in the table (this edition: 3). The earlier 2,048-cap control, where BF16 lost 7/70 to truncation, is retained unchanged at receipts/public-capability-bf16-superseded-cap2048.json.

Status of this evidence

This is a first public, licence-compatible, item-paired benchmark, not a leaderboard claim. The honest next step is more items, which is the plan's own P1: HumanEval+/MBPP-style executable cases, IFEval-style constraint following, tool schemas, and a larger MMLU-Pro draw. No capability claim on this card graduates before that — including this edition's pass.

Harness tools/public_capability.py, sweep runner tools/run_public_capability.sh, suite receipts/public-capability-suite-mmlupro-70.json. Every run receipt carries the per-item raw request, raw response, extracted letter, gold letter and digests.

Downstream task retention — 40-task smoke suite (prior, narrower evidence)

This ran before the MMLU-Pro suite above and is kept unchanged. It is the narrower evidence: self-generated tasks with contract checks, not a public benchmark.

On 40 deterministic generated tasks (10 each arithmetic, executable builtins-only code, exact-list instruction following and tool-call schema), BF16 and every comparator scored 40/40. This build had zero regressions and matched BF16's exact final-answer text on 32/40; all eight differing answers still passed their contracts. Wilson 95 % lower bound is 91.2 %. This is a transparent smoke suite, not a public leaderboard; full responses are in the run receipt; its extracted-value agreement field is superseded by the strict rescore.

Long context, verified by generation

Not an allocation test. A unique code is planted in held-out literary text at three depths and the model is asked to return it. Every row below was measured on the rental RTX PRO 6000 (SM120, 95.6 GiB) with vLLM budget-capped to a 5090-sized budget — the int8 native rows at the 30.24 GiB engine budget — and not on a physical card of that size, so every wall time and token rate in this table is a rental figure:

Table with columns: profile, prompt tokens, needle depth, retrieved exactly, wall, request-average prompt tok/s*
profile	prompt tokens	needle depth	retrieved exactly	wall	request-average prompt tok/s*
BF16 input, MTP-3	28,613	0.1 / 0.5 / 0.9	3/3	6.3 s	~4,500 tok/s
BF16 input, MTP-3	113,345	0.1 / 0.5 / 0.9	3/3	34.3 s	3,301 tok/s
BF16 input, MTP-3

13/13 exact retrievals. *This is prompt tokens divided by total request wall time, including decode, queueing and HTTP overhead — not an engine-timed prefill measurement. The request-average prompt-token rate falls with length, consistent with increasing attention cost; this receipt does not attribute the decline. The physical RTX 5090 later re-ran the same 261,794-token needle at the qualified profile and retrieved it exactly in 179.218 s at 1,460.8 prompt tok/s including decode. That is a different card from the 123.1 s / 2,127 tok/s row above, and the qualification receipt's own claim_scope sets the rule this card follows: throughput measured on the 5090 is never comparable with rental numbers and the two are never differenced.

For text-only proof, the harness applies the chat template itself and posts to /completions, so the server tokenizer can size the exact final prompt. The multimodal chat path is also validated at length, but it must use --mm-processor-kwargs '{"truncation":false,"max_pixels":8388608}': one combined request preserved 236,824 prompt tokens, retrieved the planted code and read the image correctly. The text-only wrapper is:

text
<|im_start|>user
{your long prompt}<|im_end|>
<|im_start|>assistant
<think>

</think>

Native 262,144, qualified on a physical RTX 5090

The opt-in VLLM_EXL3_EMBED_BITS=8 overlay narrows the input embedding table. At 248,320 × 5,120, BF16 costs 2.543 GB resident; the operation is a gather, so per-row symmetric int8 halves it without putting another matmul on the serving path.

Table with columns: BF16 input, MTP off, int8 input, MTP off, int8 input, MTP-3 + 8.4 MP cap
	BF16 input, MTP off	int8 input, MTP off	int8 input, MTP-3 + 8.4 MP cap
embedding table	2.543 GB	1.272 GB	1.272 GB, shared with draft
resident weights	19.31 GiB	18.13 GiB	18.41 GiB
largest configured context tested	229,376	262,144	262,144 (native)
KV allocated at that length	240,080 tokens

The 18.41 GiB in the last column is the as-run figure from the rental engine-budget proof. The same checkpoint in the same configuration measured 18.19 GiB on the physical RTX 5090 at the qualified 0.955 profile, quoted later in this section — 0.22 GiB lower. Both are real measurements on different cards with different allocator settings; this card publishes the larger one for the reason given under the four-builds table, and never adds the two.

Fidelity cost of the input overlay, measured on the v3 suite: +0.000065 mean KLD, 95 % CI [+0.0000046, +0.00013], 49/136 v3 contexts; corrected v3-subset point estimate +0.000082. The v5 held-out run scored the serialized checkpoint only, so the overlay delta has not been remeasured there and the v3 attribution stands as the only evidence for it. MTP does not alter the accepted target distribution; its draft is separately quantized and shares the target input table.

The native MTP profile is a served proof, not allocation arithmetic. Every figure in this paragraph is from the rental RTX PRO 6000 engine-budget run: 261,794 text tokens retrieved exactly; a 3,072 × 2,304 image returned red, blue; and a single request combining that seven-megapixel image with 229,910 measured text tokens produced a 236,824-token prompt and exact 1376346594 | red, blue. Warmed 256-token single-stream decode measured 98.72 tok/s in one run on that rental card.

Qualified on a physical RTX 5090. All seven acceptance gates pass on one NVIDIA GeForce RTX 5090 (GPU-506a575d-01d7-b12e-9a0a-c1ab5f38ae0a, 32,607 MiB total, 32,149 MiB free idle, which vLLM sizes as 31.4 GiB usable; driver 610.57.04, CUDA UMD 13.3), running the pinned image digest below plus the three content-pinned patch modules, vLLM 0.11.2.dev280+gilded.gnosis.v20.vllm4d006a4.b12xcd3ce19.fi1ac6942.cu132.20260810.r34. The qualified profile is --gpu-memory-utilization 0.955 with PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True; everything else is the published recipe unchanged. That utilisation is a measurement on that board, not a property of the RTX 5090: a second physical 5090 needed 0.956, and Utilisation is a per-card measurement below gives the mechanism and what to do about it.

At startup the engine budget is 29.98 GiB (free 30.9 of 31.4 GiB) and measured usage is 18.19 weight + 1.78 peak activation + 0.27 non-torch + 0.45 CUDAGraph = 20.69 GiB, leaving 9.28 GiB of KV = 265,122 tokens and 1.01x maximum concurrency at 262,144. Attention block size is forced to 1600 tokens so the attention page is at least the mamba page; the mamba page is padded 0.25 %; 3 padding layers cost at most 6.25 % KV waste. Startup is 55.7 s, of which model load is 18.19 GiB in 3.99 s.

The seven gates: startup native allocation within the utilisation ceiling; the 261,794-token needle exact, in 179.218 s at 1,460.8 prompt tok/s including decode; the combined 236,824-token plus 7,077,888-pixel request returning 1376346594 | red, blue exactly; the 30-case image suite at 24/30; three warmed 256-token concurrency-1 decode runs at a median 107.56 tok/s (107.47–108.12, 0.60 % spread); a second native-length request after release in the same process; and identity complete. Every number in this paragraph is a physical RTX 5090 measurement, and per the receipt's claim_scope none of them may be differenced against the rental figures earlier on this card. Machine-readable proof: receipts/qualification-5090-context.json (schema qwen38-qualification-5090-context/1), with per-process server logs receipts/qualification-5090-context-server-{B3,B4,C,D,E,F}.log.

Prior receipt, superseded in hardware scope. The earlier result ran on an RTX PRO 6000 with vLLM capped to 30.24 GiB, below the 30.44 GiB budget of a 31.39 GiB RTX 5090 at utilisation 0.97. That remains a valid engine-budget and served-path proof, and it is the historical source of the 0.97 value earlier revisions of this card printed; what it could not prove is a physical card, because the real GPU retained memory beyond the cap. The 5090 qualification above replaces it as the hardware claim and corrects the utilisation.

The captured run named the pinned image digest but did not preserve a launch-time full-rootfs manifest. The published rerun harness now verifies every extracted-rootfs entry and the three installed patch hashes before launch; that stronger image check applies to reruns, not retroactively to this historical result.

bash
-e VLLM_EXL3_EMBED_BITS=8 -e VLLM_EXL3_GRAPH_DECODE=1 \
  -e PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True \
  ... --max-model-len 262144 --gpu-memory-utilization 0.955 --max-num-seqs 1 \
      --kv-cache-dtype fp8 --max-num-batched-tokens 2048 \
      --speculative-config '{"method":"mtp","num_speculative_tokens":3}' \
      --mm-processor-kwargs '{"truncation":false,"max_pixels":8388608}' \
      --compilation-config '{"cudagraph_mode":"FULL_DECODE_ONLY","cudagraph_capture_sizes":[4]}'

0.955 is the measured value, not a round number: it is what passes the combined long-text-plus-large-image case on that one physical 5090 with the full 8,388,608-pixel ceiling, and 0.97 does not (receipts/qualification-5090-context.json). It is also not universal — a second physical 5090 needed 0.956. Read Utilisation is a per-card measurement below before treating it as a constant.

Two model files must pass their existing quant config into VocabParallelEmbedding: qwen3_5.py and qwen3_5_mtp.py. Backends without an embedding() method retain BF16. The exact patched files and SHA-256 digests are in the companion repository.

Utilisation is a per-card measurement

0.955 is what qualified on one board, and it is not a constant. That board is GPU-506a575d-01d7-b12e-9a0a-c1ab5f38ae0a: 32,607 MiB of framebuffer, 458 MiB of it held by the driver, so 32,149 MiB CUDA-visible, driver 610.57.04 — all seven gates, 265,122 KV tokens at 262,144, 1.01x (receipts/qualification-5090-context.json). A second physical RTX 5090, reported by a user running this edition at 262,144 with MTP-3, needed 0.956: 0.955 missed by about 0.01 GiB (receipts/second-5090-datapoint.json). Two data points, two different minimum values, so the claim this card makes is "0.955 is measured, on the board named above, and the margin is thin" — never "0.955 is what an RTX 5090 needs".

Why a thousandth is enough to matter, measured. Two nominally identical boards differ in exactly two quantities that no configuration can move: the driver's framebuffer reserve, which sets how much of the board CUDA can see at all, and the CUDA context, which is the first thing subtracted from what CUDA can see. On the qualified board those are 458 MiB and 0.496 GiB. In the 24 GiB-class proxy run the most fragile gate — the combined long-text plus seven-megapixel request — passed with 68 MiB of margin, so a board reserving 68 MiB more, or carrying a 68 MiB larger context, would have failed it; both are 0.3 % perturbations (receipts/qualification-24gib-capped.json → residual_risk_versus_a_physical_board). The engine requests ceil(cudaMemGetInfo_total × utilisation), and on a 32,149 MiB CUDA total one thousandth of utilisation is about 32 MiB — the same order as the differences between two cards. A 0.001 bump between two 5090s is therefore expected behaviour, not a defect in either card.

So if your card refuses to start or OOMs at startup, raise utilisation by 0.001 at a time — 0.956, then 0.957 — and stop at the first value that starts. Do not drop --max-model-len first: the window is the capability and the shortfall is tens of MiB. And do not reach for max_pixels: at fixed utilisation, lowering it lowers profiled activation, the engine spends every freed byte on more KV, and the large-image request then fails sooner — at 0.97 the 4,194,304-pixel profile OOMed with 6.56 MiB free against 8,388,608 pixels' 26.50 MiB (bounded_negative_results in receipts/qualification-5090-context.json, and Bounded negative: utilisation is the knob, not the image ceiling below). The ceiling on the bump is the one gate 3 sets: 0.97 starts and serves text but cannot serve a large image on this board, so treat anything approaching it as text-only.

Correction: no second resident MTP embedding

An earlier card revision said the draft kept a second resident table and that separately quantizing it to int4 preserved acceptance. Runtime receipts contradict that:

text
Detected MTP model. Sharing target model embedding weights with the draft model.

The draft table is materialized during load, then replaced by the target embedding. The int8/int4 acceptance comparison therefore did not exercise int4 at inference; 56.1 % versus 56.7 % was run noise. The separate draft-width environment variable and int4 method were removed. PR #319 carries the same correction in its body and public comment.

Why the image ceiling is load-bearing

The initial MTP-3 profile retained the model's 16,777,216-pixel image default. It needed 9.13 GiB of KV against 8.59 GiB available and refused native length. vLLM reserves activation memory for the maximum allowed image at startup; that default, not a second draft embedding, was the remaining lever.

At 8,388,608 pixels and the stricter 30.24 GiB budget, peak activation is 1.78 GiB, available KV is 9.31 GiB, and the engine allocates 266,612 tokens. The cap still accepts the tested 7,077,888-pixel image. It does not claim that the original 16.8 MP ceiling fits.

Reducing concurrency to one and capturing only the speculative row count are also part of this profile. A compact KV-group experiment remains rejected: it reduced padding from three layers to one but raised graph memory from 0.46 to 1.25 GiB and increased total required KV. Machine-readable proof and exact artifact hashes: receipts/native-mtp-8mp-amendment.json.

Bounded negative: utilisation is the knob, not the image ceiling

At --gpu-memory-utilization 0.97 with no allocator configuration (bounded_negative_results arm B) on the physical 5090 the engine starts, serves text and retrieves the 261,794-token needle exactly, but the combined 236,824-token plus 7,077,888-pixel request dies with torch.OutOfMemoryError inside vllm/v1/attention/ops/vit_attn_wrappers.py: it wants 62.00 MiB with 34.56 MiB free and 272,570 KV tokens allocated, the engine goes EngineDeadError and the request returns HTTP 500.

Adding PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True — the setting PyTorch's own OOM message recommends — did not save it (arm B2, the same 0.97 budget). The allocator did free memory, and vLLM immediately spent it on KV: 272,570 → 280,017 tokens, the same 62.00 MiB allocation, now 26.50 MiB free. The two free-memory figures are two different arms of the same utilisation, not one condition measured twice.

Lowering the image ceiling instead was strictly worse. At 0.97 with --mm-processor-kwargs '{"truncation":false,"max_pixels":4194304}' the profiled peak activation fell to 1.35 GiB, so KV grew to 291,933 tokens, and the request OOMed sooner: 20.00 MiB wanted, 6.56 MiB free.

The mechanism is that vLLM sizes the KV cache to consume whatever is left of the budget after profiling, so every byte freed anywhere else is spent on KV and the slack never materialises; lowering max_pixels lowers profiled activation, which enlarges KV, which leaves less room for the real vision activation. The knob is therefore utilisation, not max_pixels — and lowering max_pixels additionally downscales large images silently.

Seven megapixels is not a hard ceiling on a 32 GB card. The identical request succeeds on the same physical card at 0.955 with the full 8,388,608-pixel ceiling, native 262,144 and MTP depth 3 all intact; the only cost is KV slack, 280,017 → 265,122 tokens, still 1.01x concurrency at native length. Failures and pass are recorded as bounded_negative_results runs B, B2 and B4 in receipts/qualification-5090-context.json, with server logs receipts/qualification-5090-context-server-{B3,B4}.log.

Prefix caching is off by default for this model

vLLM disables prefix caching for this hybrid mamba model: the engine banner of every recipe here reports enable_prefix_caching=False with no flag from us, and every scheduler line logs Prefix cache hit rate: 0.0%. The absent upstream fix vLLM #51113 — a prefill chunk ending mid-block can publish a truncated GDN state that a later request over a shared prefix could consume — is therefore latent on this profile, never exercised, and no gate depended on it; a control arm run with --no-enable-prefix-caching reproduced the needle and the decode bench unchanged (receipts/qualification-5090-context.json, prefix_caching_control_arm). Turning prefix caching on is outside this qualification: it requires the declared-superset image that adds #51113 (localhost/vllm:gg-r34-patched-apc, not the qualified digest) plus a qualification run of its own.

24 GB class

This checkpoint has a 24 GB-class serving profile. No new conversion is required — it is the same weights, so every fidelity number above carries over unchanged.

Table with columns: profile, context window, KV dtype, MTP, max_num_seqs, image cap, KV pool required
profile	context window	KV dtype	MTP	`max_num_seqs`	image cap	KV pool required
speculative	24,576	fp8	3 draft tokens	1	8.4 MP	1.43 GiB
non-speculative	45,056	fp8	off	1

Both windows are predictions, not measurements on a 24 GB board. They rest on a capped-budget proxy: an RTX 5090 whose engine budget was restricted to 22.49 GiB and whose card was ballasted down to 23.55 GiB free — a 24 GiB board's budget and its card together. On that proxy, 32,768 with MTP-3 and 45,056 with MTP off were each started and passed 7/7 gates: startup, needle retrieval at the profile's own length, a combined long-text plus 7 MP image request, the 30-case vision suite, warmed throughput, a second long request in the same process, and receipt completeness. 24,576 was not itself started. It is derived from those measurements as the largest 4,096-multiple clearing the ≥15 % KV-headroom rule, and it is safe a fortiori: it requires 1.4269 GiB against the 1.6925 GiB the gated 32,768 window actually demanded, at a measured 1.79 GiB pool. The physical-board gate remains open. No 24 GB board has been started, and until one is, "predicted" and "allocated" are different words.

A budget cap on a big card is not a substitute for a small board. The control arm, which capped the engine's budget but left the card whole, peaked 1,496 MiB above the total memory a 24 GB board has — it passed the image gates on memory no such board owns, which is precisely why the ballasted arm exists and why this profile is labelled a proxy.

Serving flags — the qualified 32 GB configuration with the window changed and nothing else:

bash
VLLM_EXL3_EMBED_BITS=8 VLLM_EXL3_GRAPH_DECODE=1 \
PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True \
vllm serve <ctx-checkpoint> --gpu-memory-utilization 0.955 \
  --max-model-len 24576 --max-num-seqs 1 --kv-cache-dtype fp8 \
  --max-num-batched-tokens 2048 \
  --speculative-config '{"method":"mtp","num_speculative_tokens":3}' \
  --mm-processor-kwargs '{"truncation":false,"max_pixels":8388608}' \
  --compilation-config '{"cudagraph_mode":"FULL_DECODE_ONLY","cudagraph_capture_sizes":[4]}'

For the non-speculative profile, drop --speculative-config and set --max-model-len 45056.

Evidence: receipts/qualification-24gib-capped.json (proxy qualification,

markdown

physical_board_gate: open

) and receipts/vram-class-verdict.json (class decision and arithmetic).

Throughput

Median of 3 runs on one rental RTX PRO 6000 Blackwell, --max-num-seqs 8, greedy, 256 output tokens. Every figure in this section is a rental measurement.

Table with columns: configuration, TG C1, TG C4, TG C8, PP 2k, PP 6k
configuration	TG C1	TG C4	TG C8	PP 2k	PP 6k
B12X everywhere (as published upstream)	56.0	197.2	397.3	5,078	5,188
+ prefill routing (shipped here)	56.0	197.0	398.8	5,250	5,249
+ FP8 prefill (rejected, see below)	56.7

The native MTP-3 / 8.4 MP / 262,144 profile measured 98.72 tok/s C1 in one warmed 256-token run on that same rental card. It is a capability receipt, not part of the three-run concurrency matrix above. The physical RTX 5090 measured that same profile at a median 107.56 tok/s over three warmed runs; the two cards are never differenced, per the qualification receipt's claim_scope.

A whole class of matrices was on the wrong kernel at prefill. The serialized EXL3 path routes every K6/MCG shard with 128-divisible dimensions to B12X's native kernel before the reconstruct dispatch is consulted — on this build that is 208 attention projections, 64 down_proj and the head. B12X is the right choice at decode (measured ~5x faster at m≤8) and the wrong one at prefill (reconstruct+GEMM wins 1.08-1.40x at m=2048). Routing by row count inside the opaque op gains +3.4 % prefill and costs +0.0000377 mean KLD (95 % CI [−0.00001, +0.00009], 59/136 v3 contexts — a coin flip, i.e. free).

FP8 prefill is measured and rejected. Emitting the reconstructed weight directly as E4M3 and using torch._scaled_mm gives +31 % prefill (5,078 → 6,650) but costs +0.0141 mean KLD, which lands this build at 0.0237 — worse than official FP8. Row-wise scaling (per-token activation, per-channel weight) did not help: the loss is FP8 activations, not scale granularity. It stays off; VLLM_EXL3_PREFILL_FP8=1 enables it for anyone who wants prefill over fidelity.

Concurrent serving: speculative depth is a concurrency-dependent choice

Measured on the user's own physical GeForce RTX 5090 (32,607 MiB, driver 610.57.04) on the immutable production image localhost/vllm:gg-r34-patched (sha256:6eca4c69…) with no source bind mounts, serving this checkpoint — 11 configurations at --max-model-len 262144 with fp8 KV, identical frozen token-id prompts, three warmed repeats (receipts/perf-sweep-5090.json, decision record docs/36-performance-levers-5090.md). Nothing in this subsection may be differenced against the rental table above, per the receipt's own rule; every figure here is a physical-5090 measurement.

The decision metric is accepted tokens per step ÷ step time, never acceptance rate. Reference row, MTP depth 3 at --max-num-seqs 8: prefill 3,374.4 tok/s at 2,048 prompt tokens and 3,255.4 at 6,144; decode aggregate at temperature 0 82.94 / 263.12 / 313.28 tok/s at 1 / 4 / 8 concurrent streams, 2.1429 accepted tokens per step at one stream, step time 25.72 / 30.64 / 49.52 ms.

Table with columns: configuration, C1, C4, C8, acc. tok/step (C1), step ms (C1), step ms (C8), KV tokens
configuration	C1	C4	C8	acc. tok/step (C1)	step ms (C1)	step ms (C8)	KV tokens
MTP depth 3 (the shipped default)	82.94	263.12	313.28	2.1429	25.72	49.52	272,570
MTP depth 2	79.46	269.79	306.67

At one stream depth 3 wins on the decision metric, 2.1429 accepted tokens per step over 25.72 ms = 83.31 per-request tok/s against depth 1's 1.6558 over 22.29 ms = 74.28. At eight streams it reverses decisively: num_speculative_tokens=1 costs 22.98 % of accepted tokens per step (2.1753 → 1.6754) but takes 37.25 % off step time (49.52 → 31.07 ms), so aggregate throughput rises 30.67 %, 313.28 → 409.35 tok/s (+22.75 % per request), and it holds 10,911 more KV tokens — it was the only row whose needle ran at the full 261,794 tokens, retrieved exactly, with the 30-case image suite unchanged at 24/30. Depth 2 is dominated at both ends, and at concurrency 4 the choice does not matter (±2.6 %). The crossover exists because depth costs a fixed amount of step time per drafted token and its acceptance does not improve with batch size, while a wider batch already fills the step: past some concurrency the cheaper step buys more than the deeper draft.

The concurrent-serving variant of the recipe below, then, is the same command with --max-num-seqs 8 and "num_speculative_tokens":1. One constraint that comes with it: at 262,144 tokens the 8-sequence profile does not start at the qualified 0.955 — the engine needs 9.13 GiB of KV and 0.955 leaves 9.07 — so the whole matrix ran at 0.97, which is a text-only profile because a large image OOMs in the vision tower there. Keep --max-num-seqs 1 at 0.955 for any vision-capable deployment, exactly as the qualified recipe below does.

Closed avenues, so nobody re-runs them. --attention-backend FLASHINFER is a no-op: the engine already auto-selects FlashInfer on SM120 with fp8 KV and head_size 256 (Using FLASHINFER attention backend out of potential backends: ['FLASHINFER', 'TRITON_ATTN']). Forcing TRITON_ATTN is up to 5.5 % worse on step time at eight streams, and its apparent +5.5 % gain at temperature 0 becomes −7.3 % at temperature 0.6, so it moves which tokens the drafter proposes rather than how fast a step runs — acceptance noise, not throughput. custom_ops:["all"] is 2.2-5.2 % worse on step time and is not bit-exact. Both dynamic speculative-decoding knobs are structurally unusable on this build: adaptive_speculative_tokens_window and num_speculative_tokens_per_batch_size each downgrade cudagraph_mode from FULL_DECODE_ONLY to PIECEWISE, which Exl3Config refuses outright, so the server does not start — and forced eager, the only form that runs, loses 48 % of decode, far more than a depth schedule can win. Dynamic speculative depth is no longer closed — it was a fixable bug, now fixed and measured (2026-08-16). The cudaErrorIllegalAddress that made unusable was a FlashInfer gate that admitted persistent (CUDA-graph) decode wrappers only for , while the speculator's draft steps run ; the draft-decode graph was therefore captured replayed on the wrapper, whose plan buffers move on every call. Keying wrappers by the shape capture actually planned fixes it (, closes ; root cause proven with an instrumented capture-versus-replay address log plus a control that changes nothing except pinning the capture-time buffers alive). With the fix, one server running the per-batch-size schedule (depth 3 at batch 1-2, depth 1 at batch 3-8) measures , against an MRV1 baseline measured in the same window (301.6 tok/s) with C1 held — depth-1 throughput at eight streams without giving up depth-3 latency at one. Greedy outputs repeat token-for-token within an engine process in all four arms, and acceptance does not drop, so the speed is not bought with looser verification. at the V2 runner leaves 58.56 MiB free and the EXL3 prefill reconstruct OOMs on the first 2,048-token prefill (both arms, schedule off and on), so the win was measured at . Serving the published 262,144/0.97 profile under the V2 runner on a 32 GB card is . Cross-restart bit-exactness remains unclaimable on this stack ( autotune is per process). The static depths, 3 single-stream and 1 at eight streams, remain the published recipe until that KV concession is either accepted or removed (). : no graph-decode row is more than 4.0 % from the reference, so the prefill deficit is structural rather than untuned, which is the same conclusion the FP8 prefill experiment above reached from the fidelity side.

One reconciliation, because both numbers are on this card: the 82.94 tok/s above sits below the qualification's median 107.56 tok/s purely because of acceptance, not speed — 2.14 accepted tokens per step here against 2.69 there, because these frozen prompts are literary prose while the qualification's were repetitive technical prose — and step time agrees to 2.6 % (25.72 ms against 25.05 implied). The two measurements are consistent; neither corrects the other.

Multimodal

First quantitative multimodal check in this family, on deterministic synthetic images with exactly known answers, scored by exact match (30 cases, greedy, thinking disabled):

Table with columns: task, what it tests, score
task	what it tests	score
6-digit code, 5×7 bitmap font	fine detail	8/10
bar chart, tallest bar by index	spatial ordering	9/10
colour grid, count of one colour	counting and localisation	7/10
overall		24/30 (80 %)

The generator is published (tools/vision_eval.py) so the same cases can be run against any candidate. This build and its siblings carry the same BF16 vision tower; all score 24/30. The native MTP profile also answered a 3,072 × 2,304 two-colour image exactly, both alone and inside a 236,824-token combined prompt. This is still synthetic, not OCR/document/video quality.

Serving

Pinned image, unmodified fallback

bash
docker run --rm --gpus '"device=0"' --ipc host -p 127.0.0.1:8000:8000 \
  -v /models:/models:ro \
  -e PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True \
  --entrypoint /opt/venv/bin/vllm \
  voipmonitor/vllm@sha256:820181fbbc975cd5291c411cda9771d58fecee1636d916f508f47230df20592b \
  serve /models/Qwen3.8-27B-EXL3-K5K6-context \
    --served-model-name qwen38 --quantization exl3 --enforce-eager \
    --quantization-config '{"linear":{"weight":"mxfp8"},"ignore":["re:.*visual\\..*","re:.*in_proj_a$","re:.*in_proj_b$","re:.*in_proj_ba$","re:.*mtp\\..*","lm_head"]}' \
    --mm-processor-kwargs '{"truncation":false}' \
    --reasoning-parser qwen3 --enable-auto-tool-choice --tool-call-parser qwen3_coder \
    --max-model-len 196608 --gpu-memory-utilization 0.955 --max-num-seqs 4 \
    --kv-cache-dtype fp8 --max-num-batched-tokens 2048 \
    --speculative-config '{"method":"mtp","num_speculative_tokens":3}' \
    --host 0.0.0.0 --port 8000

This 196,608 profile was not itself measured on the 5090; it inherits 0.955 and the allocator setting from the qualified native profile for the same reason — 0.97 leaves too little card for the vision tower on a combined long-text-plus-large-image request — rather than on a gate of its own (receipts/qualification-5090-context.json). Its shorter window and --max-num-seqs 4 are a different memory split, so treat the value as a safe inherited default, not a qualified one.

Nothing is encoded at load: no VLLM_EXL3_ONLINE_TRELLIS_BITS, no cache directory. This is what the pinned image runs without modification. It does not include the input-table overlay, graph decode or prefill routing, so it is not the native-window profile. It also runs with prefix caching off, and must: turning it on safely needs upstream #51113, which this image predates. The patched profile below is where it is enabled.

Patched native-window profile

Clone the companion repository, verify the three executed files against the native-MTP receipt, then mount them over the pinned image:

bash
set -euo pipefail
git clone https://github.com/malaiwah/qwen38-27b-exl3
cd qwen38-27b-exl3
cat <<'SHA256' | sha256sum -c -
2df9d0799fd323798cead1edb773cab556c94798eec263ee03ded35408c6e4ee  tools/vllm-exl3-prefill-dispatch.py
04d2bd587b37142f4f55a8d00b9f8c907309490168cb7fcdfde450531df2c9e7  tools/vllm-qwen3_5-embed-quant-config.py
0090dc131f0eaf439b24d50baf4def9f10b052864c76e695053d64f66b274bab  tools/vllm-qwen3_5_mtp-embed-quant-config.py
b431c1066dfee3ed56bfa7e71cc8606f9afadc300f22d7fc542c43835d1b22bf  tools/vllm-mamba-align-scheduler.py
SHA256
PATCH=$PWD/tools
VLLM=/opt/venv/lib/python3.12/site-packages/vllm
docker run --rm --gpus '"device=0"' --ipc host -p 127.0.0.1:8000:8000 \
  -v /models:/models:ro \
  -v "$PATCH/vllm-exl3-prefill-dispatch.py:$VLLM/model_executor/layers/quantization/exl3.py:ro" \
  -v "$PATCH/vllm-qwen3_5-embed-quant-config.py:$VLLM/model_executor/models/qwen3_5.py:ro" \
  -v "$PATCH/vllm-qwen3_5_mtp-embed-quant-config.py:$VLLM/model_executor/models/qwen3_5_mtp.py:ro" \
  -v "$PATCH/vllm-mamba-align-scheduler.py:$VLLM/v1/core/sched/scheduler.py:ro" \
  -e VLLM_EXL3_EMBED_BITS=8 -e VLLM_EXL3_GRAPH_DECODE=1 \
  -e VLLM_EXL3_PREFILL_RECONSTRUCT_M=128 \
  -e PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True \
  --entrypoint /opt/venv/bin/vllm \
  voipmonitor/vllm@sha256:820181fbbc975cd5291c411cda9771d58fecee1636d916f508f47230df20592b \
  serve /models/Qwen3.8-27B-EXL3-K5K6-context \
    --served-model-name qwen38 --quantization exl3 \
    --quantization-config '{"linear":{"weight":"mxfp8"},"ignore":["re:.*visual\\..*","re:.*in_proj_a$","re:.*in_proj_b$","re:.*in_proj_ba$","re:.*mtp\\..*","lm_head"]}' \
    --max-model-len 262144 --gpu-memory-utilization 0.955 --max-num-seqs 1 \
    --kv-cache-dtype fp8 --max-num-batched-tokens 2048 \
    --speculative-config '{"method":"mtp","num_speculative_tokens":3}' \
    --mm-processor-kwargs '{"truncation":false,"max_pixels":8388608}' \
    --compilation-config '{"cudagraph_mode":"FULL_DECODE_ONLY","cudagraph_capture_sizes":[4]}' \
    --reasoning-parser qwen3 --enable-auto-tool-choice --tool-call-parser qwen3_coder \
    --host 0.0.0.0 --port 8000

--gpu-memory-utilization 0.955 plus PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True is the profile qualified on one physical RTX 5090: it is the measured value that passes the combined long-text-plus-large-image case at the full 8,388,608-pixel ceiling on that board, and 0.97 does not (receipts/qualification-5090-context.json). If your own card refuses to start or OOMs at startup, raise it by 0.001 at a time rather than lowering --max-model-len or max_pixels: a second physical 5090 needed 0.956, missing at 0.955 by about 0.01 GiB (receipts/second-5090-datapoint.json), and Utilisation is a per-card measurement above explains why a thousandth is the right step size and why max_pixels makes the vision case worse rather than better.

The container listens on all interfaces internally, but Docker publishes the port to host loopback only. For remote clients, keep that binding and put an authenticated TLS proxy in front; do not expose this unauthenticated generation endpoint directly.

The changes remain open upstream: #314, #316, #318, and #319.

Prefix caching is deliberately OFF in both recipes above, and this is what we measured before deciding that. At the native 262,144 window on a 32,607 MiB card it does not fit, and it fails in three different ways as you give the engine more room. At

markdown

--gpu-memory-utilization 0.955

the engine refuses to start: it needs 9.29 GiB of KV for one 262,144-token request against an unchanged 9.28 GiB supply, and names 260,800 as the longest window it could serve. The reason is that align mode makes a request occupy whole 1,600-token blocks, so 262,144 rounds up to 164 blocks. At 0.9555 it starts with a pool of exactly 262,144 tokens (1.0× concurrency) and then deadlocks mid-prefill. At 0.9585 — pool 265,072 tokens, 1.01×, which is within 50 tokens of what the same profile gets with the cache off — it livelocks: the request prefills to 98.9 % of the pool, is dropped back to the waiting queue with the pool freed, and re-prefills, on a 30-second cycle, at about 960 tok/s of wasted prefill, with zero output tokens for the 656 seconds we let it run and no sign it would ever stop. The cache was consulted throughout and never hit — 261,794 queries, 0 hits — because the partial prefill is discarded rather than published, so every retry costs full price. The pool is quantised, and 0.9585, 0.959 and 0.96 all yield the same pool, so there is no utilisation on this card that makes it work; and going higher is barred anyway, because 0.97 is the value that fails the combined long-text-plus-seven-megapixel request (receipts/qualification-5090-apc.json).

If you enable it anyway, this is what a hang looks like. The server does not crash and does not return an error: it accepts the request and stays busy forever. vllm:num_preemptions_total stays at 0.0 and the only signal is vllm:num_requests_waiting_by_reason{reason="capacity"} = 1, which is indistinguishable from a healthy server that is momentarily full. Your hardware is not failing. Filed upstream as vllm-project/vllm#52520 — an accepted request that can never be scheduled is re-prefilled indefinitely instead of being rejected at admission, and no preemption counter moves — with the fork-side trace at local-inference-lab/vllm#394. The exact-boundary variant of the same row, where the pool equals max_model_len and the startup check passes at 1.00× before the server produces nothing, is the open upstream PR #47272, which our measurement corroborates at a 1,600-token mamba block size. Our own prior-art search, with every query recorded so the negatives are checkable, is in receipts/upstream-issue-sweep.json.

If you want prefix caching on this edition, cap the window. Measured, not inferred: at --max-model-len 256000 with --gpu-memory-utilization 0.9585 the pool is 264,777 tokens (1.03×) and the engine serves a 255,000-token needle exactly in 180 s, completes three warmed decode runs, and answers a second long request after the first is released. The price is 6,144 tokens of context, 2.34 %. Add --enable-prefix-caching --mamba-cache-mode align and the fourth mount already shown above, and change the window. This is a bounded probe and not a qualified profile — it does not carry the combined long-text-plus-image gate or the image suite — so it is offered as a choice you may make, never as the default.

The release unit moved on 2026-08-16, and #51113 is why. Upstream vLLM #51113 (mamba align prefill-chunk splitting: a chunk that ends mid-block leaves its slot holding a short state, which a later chunk then publishes anyway — wrong tokens, HTTP 200, no crash) merged 2026-08-06, after the pinned public image was built, and is still absent from it and from fork head fa033bd4e. Cherry-picks were requested upstream on 2026-08-16 (issue #392, PR #393). Until they land it is carried as tools/vllm-mamba-align-scheduler.py (sha256 b431c106…), and the image this project serves is now the four-module localhost/vllm:gg-r34-patched-apc, manifest sha256:16a936b877b90f…, promoted from the three-module localhost/vllm:gg-r34-patched (sha256:6eca4c693f01b6…) (receipts/production-image.json). With prefix caching off the two images are not merely similar but behaviourally identical, because the added module's changed function is unreachable unless is — so the earlier hardware qualification carries over unchanged. One warning if you inspect the image yourself: its build-time label still reads and is — it was written before the image could possibly have been qualified, and correcting it would add a layer and change the very digest that was measured. That digest is local to the build host, so the recipes here reproduce its content with sha256-verified read-only mounts over the pullable public base.

What prefix caching buys. On disjoint documents, so the cold case is genuinely cold: a 32,842-token prefix went 12.07 s cold → 1.04 s warm (11.6×, 2,442 of 32,842 prompt tokens recomputed, 92.6 % hit rate) and a 131,146-token prefix went 67.60 s → 2.31 s (29.3×, 3,146 of 131,146 recomputed, 97.6 %); a 38-request schedule ran 84.0 s with the cache against 144.4 s without (receipts/apc-poison-repro.json). And what we actually know about its safety. Correctness was probed adversarially before any of this shipped: seven freshly started servers, 38 requests each, 266 scored requests, nested token prefixes so later requests hit blocks published by earlier ones, and no prompt length a multiple of the measured 1,600-token mamba block, so prefill chunks end mid-block by construction — zero corrupted responses, zero wrong answers, zero acceptance collapses, on the unpatched image as well as the patched one. Thresholds were committed before the first server started; the worst repeated block was 15 characters against an 80-character threshold, with no U+FFFD anywhere. Greedy chosen-logprob drift with the cache on is 0.1063 mean absolute against a measured run-to-run floor of 0.0823 — drift, never an answer change. So the module is carried as insurance backed by upstream's own regression file — 14 failed / 6 passed against the vendored scheduler, 20 passed against this one — and not by a reproduction of our own: we tried hard to reproduce the reported corruption and could not (receipts/mamba-align-defect.json).

LMCache is unmeasured by us. It is not part of any recipe on this card, this project has never run it, and it is the outstanding suspect in the one user report of prefix-cache corruption we have. Nothing here says LMCache is safe; the evidence above covers vLLM's own prefix cache and nothing else.

#51812 was not observed to do anything on the recipes on this card, and it is not recommended here. Upstream #51812 (Qwen GDN speculative gate ordering: the vendored code gathers the speculative Q/K/V rows but hands the recurrent update the ungathered a/b gate tensors, so gate row i can belong to a different token than Q/K/V row i) merged 2026-08-11 and is absent from the promoted image. A CPU-only counter mounted over the engine's GDN metadata builder measured whether that path is ever entered on this edition's own eight-stream concurrent profile — the native 262,144 window, --max-num-seqs 8, MTP-3, fp8 KV, --max-num-batched-tokens 2048, utilisation 0.97, and prefix caching off, as both recipes here ship it. Zero events in 3,329 metadata builds, which bounds the rate below 0.90 miscomputed metadata builds per thousand — and below 1.42 per thousand gather-branch builds — at 95 % by the rule of three (receipts/gdn-gate-concurrency.json). Read that as a bound, not as an absence. A zero over 3,329 builds says the rate is small, not that the composition cannot occur: the smallest rate this run could have resolved is one event in 3,329 builds, 0.30 per thousand, and the traffic was ours rather than yours. What the run does rule out is a rare-window excuse, because the suspect gather branch was not rare — it ran 2,112 times, 63 % of all builds, and the speculative tokens were the leading tokens of the batch every single time, which is what the engine's batch reorder gives you when no non-speculative request shares their region. Mixed batches are the normal steady state here, and in that ordering the gather is aligned and the module changes nothing.

Reachable elsewhere, though — this is a statement about this recipe, not about the defect. The same instrument entered the defective path in the siblings' shipped 8,192-token prefix-caching recipe at eight streams: three events in 5,825 builds, 0.515 per thousand. The three cards that ship --enable-prefix-caching --mamba-cache-mode align now recommend mounting the overlay for concurrent serving; this card does not, because the flag that opens the path is the one both recipes here decline. Two consequences worth stating plainly. If you take the capped-window prefix-caching option described above — --max-model-len 256000 with

markdown

--enable-prefix-caching --mamba-cache-mode align

— and run it at more than one sequence, you are in the regime that fired, and you should mount the overlay; its rate at that window is unmeasured. And the token-budget clamp mechanism specifically was not observed at all: 9,027 gather-branch builds across two token budgets bound it below 0.332 per thousand, which is rarer-than-our-exposure, not impossible.

If you want it anyway, it is one more read-only mount: tools/vllm-qwen-gdn-spec-gates.py (sha256 7cd3f5fe763b621048af4817951a841d99c8b700d9a56ded27ccaca5a56ccbe0) over /opt/venv/lib/python3.12/site-packages/vllm/model_executor/layers/mamba/gdn/qwen_gdn_linear_attn.py, diff-identical to upstream's eight changed lines and py_compile-clean under the image's Python 3.12.3. It stays an overlay and deliberately not part of the qualified digest: sha256:16a936b877b90f… is what was qualified, and a reachability count is not evidence that would survive a re-qualification. The effect on answers was measured in neither direction, and measuring it was declined on resolution grounds: upstream's per-event effect is 0.002755 mean absolute chosen-logprob error against this project's measured 0.0823 run-to-run floor — a noise floor about thirty times the size of one event — so no A/B at these rates could return anything but its own noise (receipts/gdn-spec-gate-defect.json is the source-level defect analysis).

What is still qualified here, and at what. The recipe above is unchanged apart from the fourth mount, and the fourth mount changes nothing while prefix caching is off: --gpu-memory-utilization 0.955 with PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True remains the profile whose seven gates passed on a physical RTX 5090, at window 262,144, --max-num-seqs 1, MTP depth 3, fp8 KV and the full 8,388,608-pixel ceiling (receipts/qualification-5090-context.json). The concurrent-serving variant this card also documents is not qualified at any sequence count, with or without the cache.

Load-bearing details, unchanged from the siblings: --quantization exl3 is mandatory; the ignore list is mandatory and its anchoring is subtle (re:.*visual\..* matches, re:.*\.visual\..* silently does not and crashes startup, #311). The tested config ignores mtp.* from the generic BF16 online overlay; EXL3-owned draft projections are selected first and still load from serialized tensors. truncation:false is required for large images (#313); max_pixels:8388608 is required for the measured native-MTP memory profile.

KV-cache dtype: the fp8 default is measured, not assumed

Every recipe on this card pins --kv-cache-dtype fp8, and a five-arm sweep on the same physical RTX 5090 — this checkpoint, this qualified profile, the KV dtype the only deliberate flag change — confirms the choice: no arm beats fp8 on native-or-beyond context on 32 GB with retrieval intact (receipts/kv-dtype-sweep-5090.json, decision record docs/38-kv-dtype-sweep.md). The engine derives the attention backend from the KV dtype, so each arm is measured as it actually serves:

Table with columns: --kv-cache-dtype, backend (engine-chosen), KV tokens at 262,144, prefill, same 261,795-token prompt, top-1 / trunc. KL vs bf16-KV
`--kv-cache-dtype`	backend (engine-chosen)	KV tokens at 262,144	prefill, same 261,795-token prompt	top-1 / trunc. KL vs bf16-KV
fp8 (shipped)	FLASHINFER	265,122	180.4 s	95.60 % / 0.001655
int8_per_token_head	TRITON_ATTN	272,453	544.3 s	97.25 % / 0.000914
fp8_per_token_head	TRITON_ATTN

The per-token-head family is now measured rather than assumed: int8 and fp8 per-token-head each dominate fp8 on both capacity and closeness to the bfloat16-KV reference, but each pays 3.0× prefill because TRITON_ATTN is the only backend on this fork that accepts per-token-head scales — and the capacity edge is TRITON_ATTN's smaller CUDA-graph pool (0.06 against 0.45 GiB), not cheaper bytes: those arms cost more per token than fp8 (35,360 against 34,816 B/token). int4_per_token_head is the real capacity lever — 502,667 tokens, 1.92× concurrency — at two named prices: 3.6× fp8's distributional error and 2.78× its prefill. nvfp4 and nvfp4_ds_mla do not start: no attention backend on this fork advertises nvfp4 for a non-MLA decoder — all five candidates answer kv_cache_dtype not supported, including use_mla=True at head_size 576 in the off-GPU replay — and the GLM-5.2-serves-nvfp4 precedent is the owner's claim about a different model, unverified here. The fidelity column is a bfloat16-KV-reference probe at a 98,304-token context — truncated top-20 KL over 70–173 paired greedy positions, a lower bound; it is not the v5 KLD and must never be differenced against any published KLD figure. Retrieval was 44/44 exact across the five arms, 4-bit included — retrieval is not fidelity, which is exactly why the KL column exists.

Reconstruct-scratch arena: +17,874 KV tokens, and it stays an overlay

A 2-hunk fork patch to exl3.py buys this checkpoint 17,874 more KV tokens, measured on the physical 5090, and it is an opt-in overlay rather than part of the qualified digest. The pinned r34 image keeps one persistent fp16 prefill-reconstruct scratch per weight geometry — 790 MiB across the eight geometries that allocate at this card's qualified profile (the head's 5120×32768 chunk needs ≥128 sampled logit rows and never triggered in either arm). The patch (overlay tools/vllm-exl3-scratch-arena.py, sha256 9aba06ebf60ca7665c0513752387c349240ab85e1ebc44d6ce8137ef157b6c15; fork PR local-inference-lab/vllm#397) shares one grow-to-max arena per device instead, sized by the largest live geometry (170 MiB), because each reconstruct is written and consumed inside one eager call on one stream. The kernels see identical operands — same shapes, strides and dtypes.

Measured A/B at this card's qualified 262,144-token profile: engine-reported KV pool 265,122 → 282,996 tokens (+17,874, +6.7 %, 9.28 → 9.88 GiB ≈ +0.60 GiB), maximum concurrency 1.01 → 1.08, reproduced identically across two server starts per arm, the arena's own growth log ending at exactly the predicted 170 MiB (60 → 100 → 170, no fourth line) (receipts/scratch-arena.json, raw artifacts under receipts/scratch-arena-raw/). Fidelity was gated rather than assumed: the 30-case deterministic vision suite returned byte-identical answers on both arms (24/30 each, equal to the rank-1 qualification reference), a full-window needle (258,925 tokens, depth 0.5) retrieved exactly, and decode did not regress (109.2–109.7 against 108.5–108.9 tok/s over three warmed C1 runs). Read the byte-identity claim narrowly — it covers that deterministic probe set, because the control shows two restarts of the unpatched baseline differ on 7 of 8 long greedy continuations (exl3_gemm autotunes kernel configs by measured time per process), so this stack is not restart-deterministic on long greedy text with or without the patch, and every cross-restart pairing is 7 DIFF / 1 MATCH either way.

Like #51812 it is an overlay deliberately not part of the qualified digest: the pinned digest is what was qualified, a larger KV pool is not evidence that would survive a re-qualification, so it is mounted read-only over the vendored file rather than promoted into the image — -v tools/vllm-exl3-scratch-arena.py:/opt/venv/lib/python3.12/site-packages/vllm/model_executor/layers/quantization/exl3.py:ro. The static prediction had been +620 MiB / +18.7k tokens; the measured gain is 95.7 % of it, and the measured number is the one to quote. On the 24 GB class the same bytes put the published 24,576-token window at 42,450 raw token headroom, supporting 40,960 at the next window step — arithmetic only, pending a 24 GB-class boot (docs/34-vram-class-profiles.md §10.2).

Chat template

This repo ships chat_template.jinja byte-identical to Qwen/Qwen3.8-27B (sha256 c3cf9e34abf4f9e36c2d72165aa9c132d3e2a725b6c2586aaa3a8af9d7a81041), and the same bytes again in the chat_template key of tokenizer_config.json. Do not replace one without the other: under transformers 5.15.0 the .jinja file takes priority, so editing only tokenizer_config.json is a no-op. To override, pass --chat-template <file>.

Three upstream-template restrictions to code against. All three are Qwen's, unchanged by us, and all three surface as HTTP 400:

reasoning_effort accepts only xhigh (default), medium and low - measured against a live endpoint, correcting an earlier revision of this card that also listed none. The server answers HTTP 400
markdown
```
Unexpected reasoning effort none. Supported types are xhigh (default), medium, and low.
```
for none, exactly as it does for high, minimal and max - all of which vLLM's OpenAI surface advertises and this template rejects. If your client hard-codes high, serve with --default-chat-template-kwargs.reasoning_effort=xhigh.
What the ladder costs, measured rather than described. Same prompt, temperature 0, 32,768-token budget so no arm is truncated, two repeats each, on the qualified 1x endpoint ():

Echoing reasoning_content back on assistant history turns is what buys a full prefix-cache hit: measured 100 % prefix reuse when the client returns it, 94.7 % at ten turns when it does not. Community "fixed" Qwen templates are not recommended here: measured against --tool-call-parser qwen3_coder, qwen3.8-froggeric-v22 renders a tool call whose arguments the parser recovers as {}. Details in docs/39-chat-template-audit.md and receipts/chat-template-audit.json.

What is not verified

The 40-case deterministic downstream smoke has zero regressions against BF16, but it is not a public benchmark, and the 70-item MMLU-Pro pass above is a narrow pre-registered pass, not a capability claim. Still unverified: real OCR/document/video quality, long-context reasoning beyond planted-code retrieval, YaRN-1M, multi-GPU or TP>1, non-SM120 GPUs, and quant-specific safety regression testing.

Recipe development used the v3 analysis partition. A frozen source-disjoint v4 qualification was run once after selection; after the same conservative overlap correction all three EXL3 builds still beat FP8 on 36/36 paired contexts. The v5 held-out suite then re-ran the same question at 10,480,640 scored positions and reproduced the ordering and the paired wins. Absolute KLD still differs by suite, and the three sets of magnitudes may not be compared with each other.

Public capability remains partial even though this edition clears its bar. The paired MMLU-Pro matrix above now covers all six models, and this edition is the only candidate whose BF16-pass retention lower bound reaches the pre-registered 90 % (56/57, 90.7 %); K4 and official FP8 read 88.1 %, the hydrated build and online K5/K6 read 85.6 %. At 70 items that bar cannot be certified by anything giving up more than one paired pass, and every interval overlaps every other, so the matrix separates no two models and this pass is not a superiority result. Missing entirely: executable-code, constraint-following, tool-schema and larger-draw evidence — the plan's own P1.

Machine-readable base evidence is release-evidence.json; the native-MTP result is the amendment. Comparator and sibling captures are published in the fidelity dataset. This edition's v3 report is in the companion repository, but its replay capture is not yet published; the 0.009738 / 0.009459 result is therefore not independently replayable from the dataset snapshot. The v5 run publishes its manifest, corpus fetch log, cumulative receipts (receipts/kld5-*.json), the frozen suite itself and the shard-0 BF16 reference capture, but no candidate hidden states, for the scratch reason stated above — see Reproduce this.

Reproduce this

This section is about the numbers, not the bytes: a fresh conversion of the recipe produces a sibling rather than this checkpoint, as recorded under Recipe.

Everything the v5 numbers on this card were computed from is published as a dataset: malaiwah/qwen38-27b-fidelity-suite-v5 — 5,835 files, 10,826,796,868 B (10.83 GB / 10.083 GiB), verified at revision 08bde6cc. It contains the 5,120 token-id files that are the authoritative evaluation input (retokenizing the source text does not reproduce them), the parent suite manifest whose sha256 equals the ladder pin, the ladder pin itself, all ten 512-context shard views with their capture and replay command lines, the corpus fetch log, the shard-0 unquantized BF16 hidden-state reference (512 captures plus manifest, 10.73 GB) and 79 per-shard reports — 50 ladder, 10 tail, 15 scored-window, 4 cross-engine. Receipt receipts/preserved-artifacts.json; 5,326 of the 5,835 files were re-downloaded and re-hashed end to end, and the 10 GB hidden-state tree was checked against the Hub's own LFS digests plus a three-file CDN spot check.

What it costs to replay. Because the suite and the shard-0 BF16 reference are both published, a third party can score a new candidate against the identical contexts without recapturing the reference: one candidate capture plus one replay, about 6 minutes of GPU for shard 0 on a single RTX PRO 6000 Blackwell, instead of two model loads. That is exactly how the NVFP4 row in Against GGUF was produced. Re-running the whole ten-shard ladder is a different bill — about 5 hours of GPU for the fifty candidate captures, plus about 54 minutes for the nine BF16 shard references that were deleted once their reports verified.

Seven archival mirrors keep the third-party citations resolvable — the three explained below, plus the four quant-landscape shortlist mirrors cited elsewhere on this card, each pinned to the exact upstream revision measured and each now carrying a provenance banner that names its upstream author. malaiwah/Qwen3.8-27B-NVFP4-archival-9c73e2da is a recovery mirror: upstream super-squashed its history on 2026-08-15 and the Hub now answers Invalid rev id for 9c73e2da…, the revision every NVFP4 number on this card was measured against, so the reviewed revision is otherwise unreachable. malaiwah/Qwen3.8-27B-GGUF-archival-f1bfb127 is precautionary: the five files the cross-engine table cites, at a revision that still resolves upstream. malaiwah/Qwen3.8-27B-NVFP4-RTX5090-archival-69274a0d is likewise precautionary: the gittensor checkpoint measured above, at a revision that still resolves upstream, deep-verified after upload — its 19.2 GB of weights cost essentially zero transfer because the Hub already held every chunk. Said plainly, a mirror preserves the citation — a resolvable repo id, revision and digest table that survive an upstream squash or delete — and is not independent byte-level redundancy. Hub storage is content-addressed, so our copy and upstream's plausibly reference the same underlying chunks; nobody should assume physical copies we do not hold. The measured cost of the first two mirrors was 2.34 GB of transfer for 149.3 GB of content, about 1.6 %, which is that content-addressing showing through.

Prior art and credits

exllamav3 (Turboderp) — EXL3 Trellis format, LDLQ calibration, MCG codebook, conversion pipeline.
Gilded Gnosis vLLM fork (Josh Cartu / jcartu) — the EXL3 serving path and the B12X native K6 kernel this build routes around at prefill.
Qwen — base model and official FP8 derivative.
An independent RTX 5090 tester — the memory model these context numbers are calibrated on.
Research, recipe, harness and receipts: malaiwah/qwen38-27b-exl3.

Which of the four builds

Table with columns: build, download, resident, v5 held-out mean KLD, corrected v3 mean KLD, context profile, pick it when
build	download	resident	v5 held-out mean KLD	corrected v3 mean KLD	context profile	pick it when
-hydrated	21.61 GB	20.31 GiB	0.002760	0.007172	~180k, 5090 MTP-3	fidelity first
-EXL3-K5K6	30.60 GB	20.32 GiB	0.003210	0.007945	~180k, 5090 MTP-3	you want the width knob at launch
this build	20.70 GB	18.41 GiB	0.003509	0.009459	262,144, MTP-3, 8.4 MP cap	native window plus speculative decode, hardware-qualified on a physical RTX 5090
-K4	28.31 GB*	17.89 GiB	0.010604	0.029679	262,144, 5090 MTP-3	native context is non-negotiable

Official Qwen/Qwen3.8-27B-FP8 reads 0.005294 on the v5 suite and 0.012798 on the corrected v3 subset: the three K5/K6 rows are below it on both suites, K4 on neither.

Recipe

Table with columns: role, representation
role	representation
MLP `gate_proj`, `up_proj` (64 layers)	EXL3 K5, `mcg`
MLP `down_proj` (64 layers)	EXL3 K6, `mcg`
attention: `linear_attn.{in_proj_qkv,in_proj_z,out_proj}` ×48, `self_attn.{q,k,v,o}_proj` ×16	EXL3 K5 on disk, `mcg`, calibrated
`lm_head`

Fidelity

v5 held-out suite — 10,480,640 scored positions

Table with columns: candidate, v5 mean KLD, 95 % CI, top-1, paired vs official FP8, exact worst position
candidate	v5 mean KLD	95 % CI	top-1	paired vs official FP8	exact worst position
hydrated	0.002760	[0.002540, 0.003020]	97.70 %	−0.002534 [−0.002708, −0.002383], 5,118/5,120	8.258
online K5/K6	0.003210	[0.002982, 0.003480]	97.52 %

Table with columns: candidate, mean, p50, p95, p99, p99.9, p99.99, exact max, share of positions above 0.1, above 1.0
candidate	mean	p50	p95	p99	p99.9	p99.99	exact max	share of positions above 0.1	above 1.0
hydrated	0.002700	0.00109	0.0082	0.0276	0.1319	0.463	3.735

What this run does not give you.

Absolute KLD is suite-specific. The v5 numbers are not comparable with the v3 numbers below: the corpus mix differs, and K4 reads 0.029679 there against 0.010604 here. Only within-suite ordering and paired differences transfer.
Cumulative token percentiles come from one shard, not from all ten: the ten shard reports of the 10M run carry no token-level KLD histogram, so nothing could be recombined across them. The tail table above closes that gap on shard 0 (receipts/kld5-1M-tail-*.json), with bin-bounded quantiles — each receipt carries lower / upper / estimate, relative bin width about 5.6 % — and exact maxima and exceedance counts. Across all 10,480,640 positions only the means, the intervals, the paired results and one exact global maximum per candidate exist.
The five candidates' hidden states and the BF16 references for shards 1-9 were deleted shard by shard to fit 135 GB of scratch, so the v5 run is recomputable from the pinned corpus fetch log and suite manifest. The shard-0 BF16 reference was kept and is published, with the suite, all ten shard views and 79 per-shard reports, so a new candidate can be replayed against the identical contexts without recapturing the reference — see Reproduce this.

v3 development suite — 136 contexts, 278,392 positions (superseded as headline, kept)

Table with columns: candidate, resident profile, mean KLD, 95 % CI, token median, top-1
candidate	resident profile	mean KLD	95 % CI	token median	top-1
this build, BF16 input, MTP off	19.31 GiB	0.009673	[0.00711, 0.01275]	0.001672	96.81 %
this build, int8 input overlay, MTP off	18.13 GiB	0.009738	[0.00716, 0.01284]	0.001687	96.80 %
hydrated (attention K6)

Paired on identical v3 contexts:

baseline versus official FP8: −0.003453, 95 % CI [−0.004383, −0.002666], 135/136 contexts — 26 % lower divergence on this suite at 68 % of its resident weight; the int8 overlay is 64 % of FP8 resident weight for +0.000065 KLD. The same comparison on the v5 held-out suite is −0.001785 over 5,109/5,120 contexts, 34 % lower divergence; the two percentages are not two measurements of one quantity, they are two suites.
baseline versus the hydrated build: +0.002266 (1/136). That is what K5 attention costs, and it buys 0.85 GiB and ~16k tokens of context before the embedding overlay.
Calibration beats the runtime overlay again: serialized K5 attention measures 0.009673 where the same family encoded K5 at load measures 0.012135 on the original v3 receipt; overlap-corrected values are 0.009378 versus 0.011801.
With its own K6 head the BF16-input baseline is 0.009795 on the original v3 receipt and 0.009503 on the corrected subset. The head and input-overlay deltas were measured separately; their combination is not presented as a measured number.

Against GGUF, measured on our suite

Table with columns: candidate, engine, measured mean KLD, top-1, p99.9, serialized
candidate	engine	measured mean KLD	top-1	p99.9	serialized
GGUF `Q8_0`	llama.cpp	0.001087	98.53 %	0.0351	27.05 GiB
`turboderp/Qwen3.8-27B-exl3` 6.00bpw @ `d32ba0bb`	vLLM	0.001583	98.28 %	0.0668

Table with columns: candidate, file, tensor total, token_embd, output, transformer body, multimodal deployed
candidate	file	tensor total	`token_embd`	`output`	transformer body	multimodal deployed
GGUF `Q8_0`	27.05	27.04	1.258 (Q8_0)	1.258 (Q8_0)	24.526	27.92 (+ `mmproj-BF16` 0.867)
GGUF

6 bits, Q6_K against hydrated: our sentence understated their byte spend roughly threefold. "+1.186 GiB more file" is +1.198 on tensors and +3.634 GiB of transformer body (23.1 % more than ours). Their fidelity win at 6 bits stands exactly as published - it is the price we mis-stated, in our own favour.
6 bits, deployed: a multimodal Q6_K deployment is 22.18 GiB against our 20.13 GiB whole tree, so ours is 2.053 GiB smaller and needs no second file.
5 bits, UD-Q5_K_XL against the context edition: this claim was wrong against us. We do not pay "0.445 GiB more" for the win - on transformer body they carry 2.148 GiB more (+14.4 %), and our deployed multimodal artifact is 0.422 GiB smaller.
8 bits, Q8_0 against online K5/K6: the bodies agree to 1.7 % (24.526 against 24.119), the most format-comparable pair on the table, and they win it cleanly. That row is the reason the others are worth reading: this is not a table where every axis favours the author.

The complete-pipeline observations worth stating plainly:

At the nominal 6-bit point, llama.cpp Q6_K measures 0.002035 and vLLM hydrated 0.002700.
At the nominal 5-bit point, this vLLM build measures 0.003409 and llama.cpp UD-Q5_K_XL 0.004444.

Cross-citation: the same three GGUFs under llama.cpp's own protocol

Table with columns: quant, their protocol, their corpus, their top-1, our protocol, measured pipeline
quant	their protocol, their corpus	their top-1	our protocol, measured pipeline
`Q8_0`	0.000926 ± 0.000042	98.761 %	0.001087
`Q6_K`	0.002286 ± 0.000108	97.875 %	0.002035
`UD-Q5_K_XL`	0.004426 ± 0.000167	97.178 %	0.004444

Post-selection qualification (v4, source-disjoint)

Table with columns: candidate, mean KLD, 95 % CI, top-1, paired vs FP8
candidate	mean KLD	95 % CI	top-1	paired vs FP8
hydrated	0.003093	[0.002577, 0.003684]	97.63 %	−0.002798, 36/36
K5/K6 online K6	0.003455	[0.002916, 0.004060]	97.50 %	−0.002436, 36/36

Public capability — MMLU-Pro, item-paired against BF16

Table with columns: model, absolute, Wilson 95 %, BF16-pass retention, Wilson lower, regressions, improvements, completion-cap failures, receipt
model	absolute	Wilson 95 %	BF16-pass retention	Wilson lower	regressions	improvements	completion-cap failures	receipt
`Qwen/Qwen3.8-27B` BF16	57/70 (81.4 %)	[70.8 %, 88.8 %]	reference	—	—	—	4	bf16

The pre-registered bar, and this edition's verdict

Why almost nothing clears this bar at 70 items

Two protocol facts that bound the reading

Exact-answer agreement is 0/70 for every EXL3 candidate, and 1/70 for official FP8 (one math item, a 113-token answer both models pass). Long chains of thought differ token-wise on essentially every item, so pass/fail outcome is the only meaningful pairing unit; nothing here is a generated-text match claim.
Four BF16 items end at the 5,120-token completion cap with no letter emitted and are scored as failures under the plan's frozen addendum, so the control itself is depressed by the cap; per-model counts are in the table (this edition: 3). The earlier 2,048-cap control, where BF16 lost 7/70 to truncation, is retained unchanged at receipts/public-capability-bf16-superseded-cap2048.json.

Status of this evidence

Downstream task retention — 40-task smoke suite (prior, narrower evidence)

This ran before the MMLU-Pro suite above and is kept unchanged. It is the narrower evidence: self-generated tasks with contract checks, not a public benchmark.

Long context, verified by generation

Table with columns: profile, prompt tokens, needle depth, retrieved exactly, wall, request-average prompt tok/s*
profile	prompt tokens	needle depth	retrieved exactly	wall	request-average prompt tok/s*
BF16 input, MTP-3	28,613	0.1 / 0.5 / 0.9	3/3	6.3 s	~4,500 tok/s
BF16 input, MTP-3	113,345	0.1 / 0.5 / 0.9	3/3	34.3 s	3,301 tok/s
BF16 input, MTP-3

text
<|im_start|>user
{your long prompt}<|im_end|>
<|im_start|>assistant
<think>

</think>

Native 262,144, qualified on a physical RTX 5090

Table with columns: BF16 input, MTP off, int8 input, MTP off, int8 input, MTP-3 + 8.4 MP cap
	BF16 input, MTP off	int8 input, MTP off	int8 input, MTP-3 + 8.4 MP cap
embedding table	2.543 GB	1.272 GB	1.272 GB, shared with draft
resident weights	19.31 GiB	18.13 GiB	18.41 GiB
largest configured context tested	229,376	262,144	262,144 (native)
KV allocated at that length	240,080 tokens

bash
-e VLLM_EXL3_EMBED_BITS=8 -e VLLM_EXL3_GRAPH_DECODE=1 \
  -e PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True \
  ... --max-model-len 262144 --gpu-memory-utilization 0.955 --max-num-seqs 1 \
      --kv-cache-dtype fp8 --max-num-batched-tokens 2048 \
      --speculative-config '{"method":"mtp","num_speculative_tokens":3}' \
      --mm-processor-kwargs '{"truncation":false,"max_pixels":8388608}' \
      --compilation-config '{"cudagraph_mode":"FULL_DECODE_ONLY","cudagraph_capture_sizes":[4]}'

Utilisation is a per-card measurement

Correction: no second resident MTP embedding

An earlier card revision said the draft kept a second resident table and that separately quantizing it to int4 preserved acceptance. Runtime receipts contradict that:

text
Detected MTP model. Sharing target model embedding weights with the draft model.

Why the image ceiling is load-bearing

Bounded negative: utilisation is the knob, not the image ceiling

Prefix caching is off by default for this model

24 GB class

This checkpoint has a 24 GB-class serving profile. No new conversion is required — it is the same weights, so every fidelity number above carries over unchanged.

Table with columns: profile, context window, KV dtype, MTP, max_num_seqs, image cap, KV pool required
profile	context window	KV dtype	MTP	`max_num_seqs`	image cap	KV pool required
speculative	24,576	fp8	3 draft tokens	1	8.4 MP	1.43 GiB
non-speculative	45,056	fp8	off	1

Serving flags — the qualified 32 GB configuration with the window changed and nothing else:

bash
VLLM_EXL3_EMBED_BITS=8 VLLM_EXL3_GRAPH_DECODE=1 \
PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True \
vllm serve <ctx-checkpoint> --gpu-memory-utilization 0.955 \
  --max-model-len 24576 --max-num-seqs 1 --kv-cache-dtype fp8 \
  --max-num-batched-tokens 2048 \
  --speculative-config '{"method":"mtp","num_speculative_tokens":3}' \
  --mm-processor-kwargs '{"truncation":false,"max_pixels":8388608}' \
  --compilation-config '{"cudagraph_mode":"FULL_DECODE_ONLY","cudagraph_capture_sizes":[4]}'

For the non-speculative profile, drop --speculative-config and set --max-model-len 45056.

Evidence: receipts/qualification-24gib-capped.json (proxy qualification,

markdown

physical_board_gate: open

) and receipts/vram-class-verdict.json (class decision and arithmetic).

Throughput

Median of 3 runs on one rental RTX PRO 6000 Blackwell, --max-num-seqs 8, greedy, 256 output tokens. Every figure in this section is a rental measurement.

Table with columns: configuration, TG C1, TG C4, TG C8, PP 2k, PP 6k
configuration	TG C1	TG C4	TG C8	PP 2k	PP 6k
B12X everywhere (as published upstream)	56.0	197.2	397.3	5,078	5,188
+ prefill routing (shipped here)	56.0	197.0	398.8	5,250	5,249
+ FP8 prefill (rejected, see below)	56.7

Concurrent serving: speculative depth is a concurrency-dependent choice

Table with columns: configuration, C1, C4, C8, acc. tok/step (C1), step ms (C1), step ms (C8), KV tokens
configuration	C1	C4	C8	acc. tok/step (C1)	step ms (C1)	step ms (C8)	KV tokens
MTP depth 3 (the shipped default)	82.94	263.12	313.28	2.1429	25.72	49.52	272,570
MTP depth 2	79.46	269.79	306.67

Multimodal

First quantitative multimodal check in this family, on deterministic synthetic images with exactly known answers, scored by exact match (30 cases, greedy, thinking disabled):

Table with columns: task, what it tests, score
task	what it tests	score
6-digit code, 5×7 bitmap font	fine detail	8/10
bar chart, tallest bar by index	spatial ordering	9/10
colour grid, count of one colour	counting and localisation	7/10
overall		24/30 (80 %)

Serving

Pinned image, unmodified fallback

bash
docker run --rm --gpus '"device=0"' --ipc host -p 127.0.0.1:8000:8000 \
  -v /models:/models:ro \
  -e PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True \
  --entrypoint /opt/venv/bin/vllm \
  voipmonitor/vllm@sha256:820181fbbc975cd5291c411cda9771d58fecee1636d916f508f47230df20592b \
  serve /models/Qwen3.8-27B-EXL3-K5K6-context \
    --served-model-name qwen38 --quantization exl3 --enforce-eager \
    --quantization-config '{"linear":{"weight":"mxfp8"},"ignore":["re:.*visual\\..*","re:.*in_proj_a$","re:.*in_proj_b$","re:.*in_proj_ba$","re:.*mtp\\..*","lm_head"]}' \
    --mm-processor-kwargs '{"truncation":false}' \
    --reasoning-parser qwen3 --enable-auto-tool-choice --tool-call-parser qwen3_coder \
    --max-model-len 196608 --gpu-memory-utilization 0.955 --max-num-seqs 4 \
    --kv-cache-dtype fp8 --max-num-batched-tokens 2048 \
    --speculative-config '{"method":"mtp","num_speculative_tokens":3}' \
    --host 0.0.0.0 --port 8000

Patched native-window profile

Clone the companion repository, verify the three executed files against the native-MTP receipt, then mount them over the pinned image:

bash
set -euo pipefail
git clone https://github.com/malaiwah/qwen38-27b-exl3
cd qwen38-27b-exl3
cat <<'SHA256' | sha256sum -c -
2df9d0799fd323798cead1edb773cab556c94798eec263ee03ded35408c6e4ee  tools/vllm-exl3-prefill-dispatch.py
04d2bd587b37142f4f55a8d00b9f8c907309490168cb7fcdfde450531df2c9e7  tools/vllm-qwen3_5-embed-quant-config.py
0090dc131f0eaf439b24d50baf4def9f10b052864c76e695053d64f66b274bab  tools/vllm-qwen3_5_mtp-embed-quant-config.py
b431c1066dfee3ed56bfa7e71cc8606f9afadc300f22d7fc542c43835d1b22bf  tools/vllm-mamba-align-scheduler.py
SHA256
PATCH=$PWD/tools
VLLM=/opt/venv/lib/python3.12/site-packages/vllm
docker run --rm --gpus '"device=0"' --ipc host -p 127.0.0.1:8000:8000 \
  -v /models:/models:ro \
  -v "$PATCH/vllm-exl3-prefill-dispatch.py:$VLLM/model_executor/layers/quantization/exl3.py:ro" \
  -v "$PATCH/vllm-qwen3_5-embed-quant-config.py:$VLLM/model_executor/models/qwen3_5.py:ro" \
  -v "$PATCH/vllm-qwen3_5_mtp-embed-quant-config.py:$VLLM/model_executor/models/qwen3_5_mtp.py:ro" \
  -v "$PATCH/vllm-mamba-align-scheduler.py:$VLLM/v1/core/sched/scheduler.py:ro" \
  -e VLLM_EXL3_EMBED_BITS=8 -e VLLM_EXL3_GRAPH_DECODE=1 \
  -e VLLM_EXL3_PREFILL_RECONSTRUCT_M=128 \
  -e PYTORCH_CUDA_ALLOC_CONF=expandable_segments:True \
  --entrypoint /opt/venv/bin/vllm \
  voipmonitor/vllm@sha256:820181fbbc975cd5291c411cda9771d58fecee1636d916f508f47230df20592b \
  serve /models/Qwen3.8-27B-EXL3-K5K6-context \
    --served-model-name qwen38 --quantization exl3 \
    --quantization-config '{"linear":{"weight":"mxfp8"},"ignore":["re:.*visual\\..*","re:.*in_proj_a$","re:.*in_proj_b$","re:.*in_proj_ba$","re:.*mtp\\..*","lm_head"]}' \
    --max-model-len 262144 --gpu-memory-utilization 0.955 --max-num-seqs 1 \
    --kv-cache-dtype fp8 --max-num-batched-tokens 2048 \
    --speculative-config '{"method":"mtp","num_speculative_tokens":3}' \
    --mm-processor-kwargs '{"truncation":false,"max_pixels":8388608}' \
    --compilation-config '{"cudagraph_mode":"FULL_DECODE_ONLY","cudagraph_capture_sizes":[4]}' \
    --reasoning-parser qwen3 --enable-auto-tool-choice --tool-call-parser qwen3_coder \
    --host 0.0.0.0 --port 8000

The changes remain open upstream: #314, #316, #318, and #319.

markdown

--gpu-memory-utilization 0.955

markdown

--enable-prefix-caching --mamba-cache-mode align

KV-cache dtype: the fp8 default is measured, not assumed

Table with columns: --kv-cache-dtype, backend (engine-chosen), KV tokens at 262,144, prefill, same 261,795-token prompt, top-1 / trunc. KL vs bf16-KV
`--kv-cache-dtype`	backend (engine-chosen)	KV tokens at 262,144	prefill, same 261,795-token prompt	top-1 / trunc. KL vs bf16-KV
fp8 (shipped)	FLASHINFER	265,122	180.4 s	95.60 % / 0.001655
int8_per_token_head	TRITON_ATTN	272,453	544.3 s	97.25 % / 0.000914
fp8_per_token_head	TRITON_ATTN

Reconstruct-scratch arena: +17,874 KV tokens, and it stays an overlay

Chat template

Three upstream-template restrictions to code against. All three are Qwen's, unchanged by us, and all three surface as HTTP 400:

reasoning_effort accepts only xhigh (default), medium and low - measured against a live endpoint, correcting an earlier revision of this card that also listed none. The server answers HTTP 400
markdown
```
Unexpected reasoning effort none. Supported types are xhigh (default), medium, and low.
```
for none, exactly as it does for high, minimal and max - all of which vLLM's OpenAI surface advertises and this template rejects. If your client hard-codes high, serve with --default-chat-template-kwargs.reasoning_effort=xhigh.
What the ladder costs, measured rather than described. Same prompt, temperature 0, 32,768-token budget so no arm is truncated, two repeats each, on the qualified 1x endpoint ():

What is not verified

Reproduce this

This section is about the numbers, not the bytes: a fresh conversion of the recipe produces a sibling rather than this checkpoint, as recorded under Recipe.

Prior art and credits

exllamav3 (Turboderp) — EXL3 Trellis format, LDLQ calibration, MCG codebook, conversion pipeline.
Gilded Gnosis vLLM fork (Josh Cartu / jcartu) — the EXL3 serving path and the B12X native K6 kernel this build routes around at prefill.
Qwen — base model and official FP8 derivative.
An independent RTX 5090 tester — the memory model these context numbers are calibrated on.
Research, recipe, harness and receipts: malaiwah/qwen38-27b-exl3.

`reasoning_effort`	completion tokens	reasoning chars	latency	finish	correct algorithm
(unset)	18,085	56,955	168.9 s	stop	2/2
`xhigh` (default)	18,085	56,955	168.8 s	stop	2/2
`medium`	3,436	4,767	26.2 s	stop	2/2
`low`	3,517	4,606	27.0 s	stop	2/2

Qwen3.8-27B-EXL3-K5K6-context

README

Which of the four builds

Recipe

Fidelity

v5 held-out suite — 10,480,640 scored positions

v3 development suite — 136 contexts, 278,392 positions (superseded as headline, kept)

Against GGUF, measured on our suite

Cross-citation: the same three GGUFs under llama.cpp's own protocol

Post-selection qualification (v4, source-disjoint)

Public capability — MMLU-Pro, item-paired against BF16

The pre-registered bar, and this edition's verdict

Why almost nothing clears this bar at 70 items

Two protocol facts that bound the reading

Status of this evidence

Downstream task retention — 40-task smoke suite (prior, narrower evidence)

Long context, verified by generation

Native 262,144, qualified on a physical RTX 5090

Utilisation is a per-card measurement

Correction: no second resident MTP embedding

Why the image ceiling is load-bearing

Bounded negative: utilisation is the knob, not the image ceiling

Prefix caching is off by default for this model

24 GB class

Throughput

Concurrent serving: speculative depth is a concurrency-dependent choice

Multimodal

Serving

Pinned image, unmodified fallback

Patched native-window profile

KV-cache dtype: the fp8 default is measured, not assumed

Reconstruct-scratch arena: +17,874 KV tokens, and it stays an overlay

Chat template

What is not verified

Reproduce this

Prior art and credits

Explore FriendliAI today

README

Which of the four builds

Recipe

Fidelity

v5 held-out suite — 10,480,640 scored positions

v3 development suite — 136 contexts, 278,392 positions (superseded as headline, kept)

Against GGUF, measured on our suite

Cross-citation: the same three GGUFs under llama.cpp's own protocol

Post-selection qualification (v4, source-disjoint)

Public capability — MMLU-Pro, item-paired against BF16

The pre-registered bar, and this edition's verdict

Why almost nothing clears this bar at 70 items

Two protocol facts that bound the reading

Status of this evidence

Downstream task retention — 40-task smoke suite (prior, narrower evidence)

Long context, verified by generation

Native 262,144, qualified on a physical RTX 5090

Utilisation is a per-card measurement

Correction: no second resident MTP embedding

Why the image ceiling is load-bearing

Bounded negative: utilisation is the knob, not the image ceiling

Prefix caching is off by default for this model

24 GB class

Throughput

Concurrent serving: speculative depth is a concurrency-dependent choice

Multimodal

Serving

Pinned image, unmodified fallback

Patched native-window profile

KV-cache dtype: the fp8 default is measured, not assumed

Reconstruct-scratch arena: +17,874 KV tokens, and it stays an overlay

Chat template

What is not verified

Reproduce this

Prior art and credits
